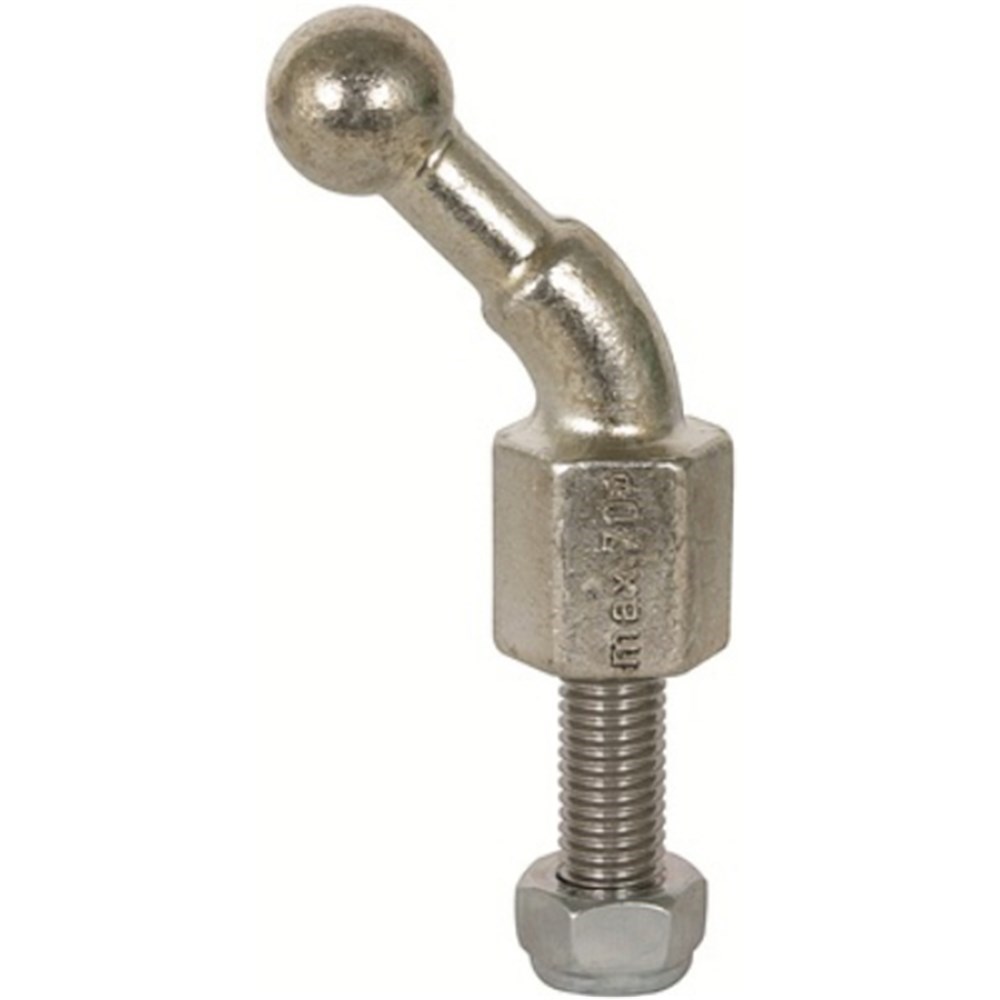

DEHN KFP25W45M1245SSM Angled Fixed Ball Point With Threaded Bolt and Nut 26500A 18700A 25mm Thread Bolt Mount M12x45mm

Product Code: KFP25W45M1245SSM

  • Supports high current up to 26500 A
  • Fixed ball point for secure connection
  • Made from electrolytic copper, tin coated
  • Compatible with earthing rods
  • Meets EN/IEC and DIN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
45 degrees angled with Threaded Pin and Self-locking Nut
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
26500 A
Fixed Ball Point Diameter
25 mm

Mechanical

Cable Cross Section
95 mm2
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
434.4 g

Documents

IPD Product Catalogue V17
