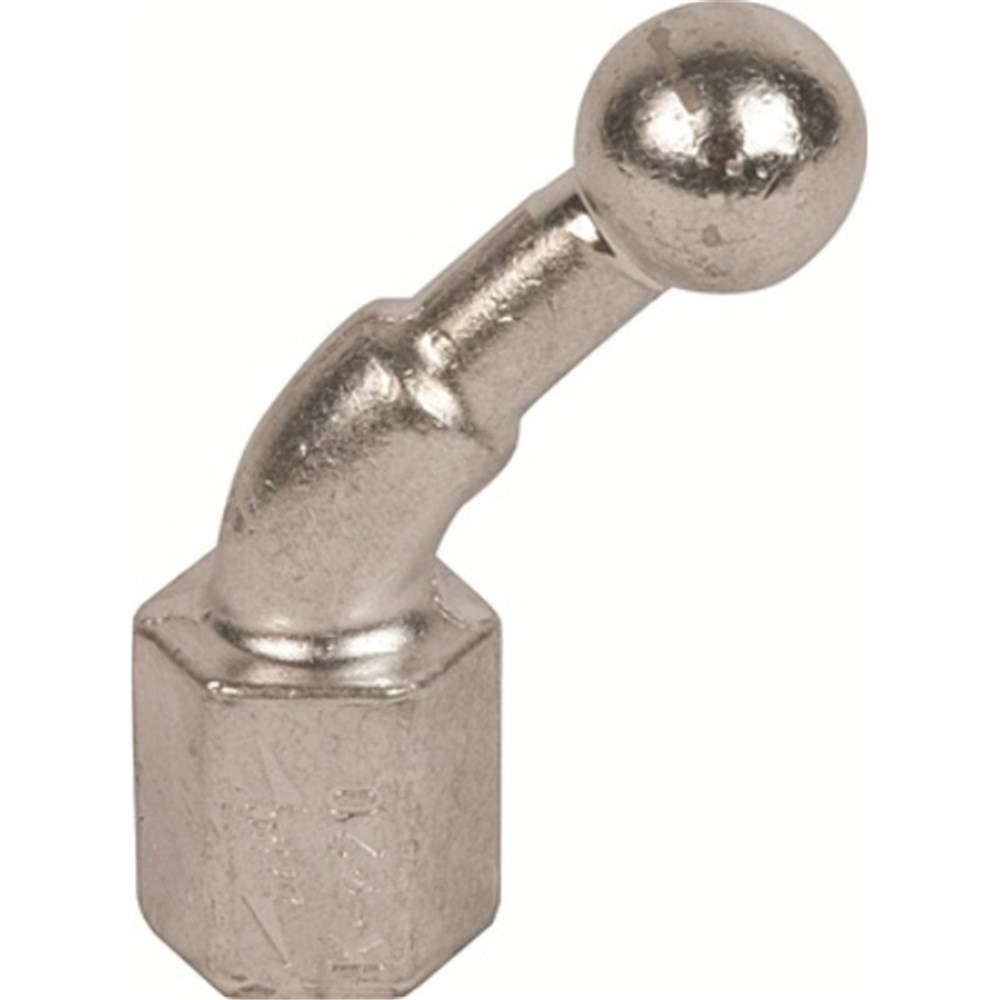

DEHN KFP25W45M12 Angled Fixed Ball Point With M12 Female Thread 26500A 18700A 25mm Internal Thread M12

Product Code: KFP25W45M12

  • Rated for 26500 A and 18700 A currents
  • 25 mm fixed ball point connection
  • Internal thread mounting with M12 size
  • Made from electrolytic, tin-coated copper
  • Complies with EN/IEC 61230 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
45 degrees angled with Female Thread
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
26500 A
Fixed Ball Point Diameter
25 mm

Mechanical

Cable Cross Section
95 mm2
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
357.2 g

Documents

IPD Product Catalogue V17
