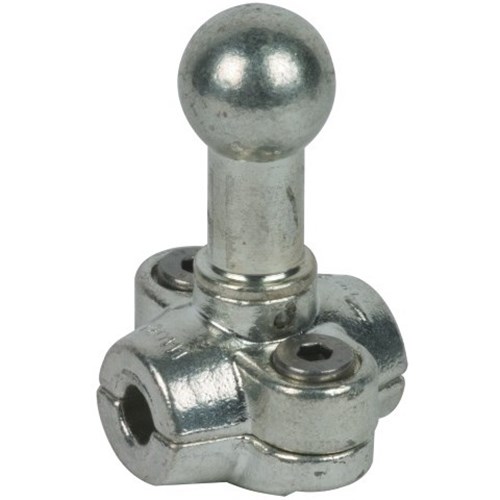

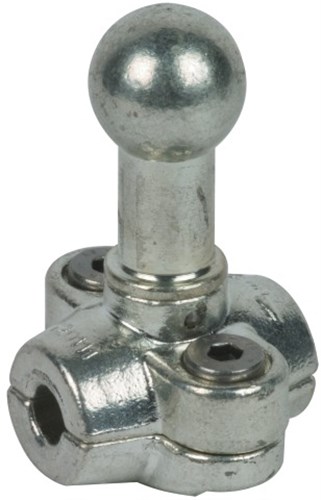

DEHN KFP25RL20 Fixed Ball Point 26500A 18700A 25mm 20mm

Product Code: KFP25RL20

  • Rated for 26500 A & 18700 A currents
  • Fixed ball point connection, 25 mm
  • Complies with EN/IEC 61230 standards
  • Made from electrolytic & tin coated copper
  • Fits 20 mm round conductors
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight With Round Conductor Half Shell For Round Copper Conductors
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
26.5kA
Fixed Ball Point Diameter
25mm

Mechanical

Cable Cross Section
95mm²
Material
E-Cu/gal Sn, StSt A2-70, Copper alloy/gal Sn, Stainless steel

Dimensions & Physical Data

Weight
0.32kg
