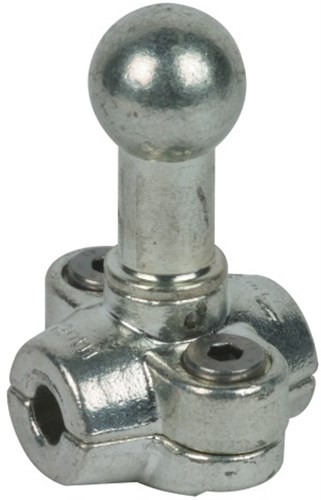

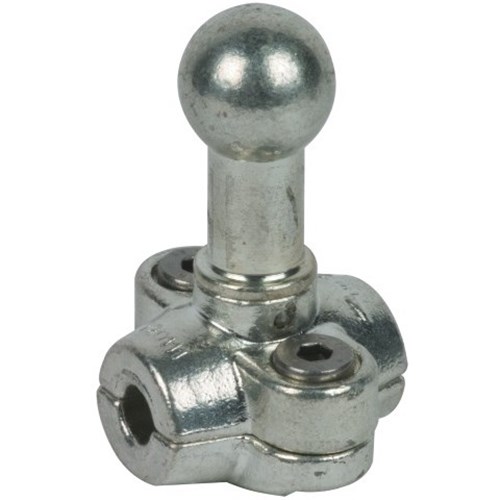

DEHN KFP25RL12 Fixed Ball Point 26500A 18700A 25mm 12mm

Product Code: KFP25RL12

  • Handles up to 26500 A current
  • Fits 12 mm round conductors
  • Made from electrolytic copper
  • Complies with EN/IEC 61230 standards
  • Compact size: 45x82x56 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight With Round Conductor Half Shell For Round Copper Conductors
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
26.5kA
Fixed Ball Point Diameter
25mm

Mechanical

Cable Cross Section
95mm²
Material
E-Cu/gal Sn, StSt A2-70, Copper alloy/gal Sn, Stainless steel

Dimensions & Physical Data

Weight
0.4kg

Documents

IPD Product Catalogue V17
