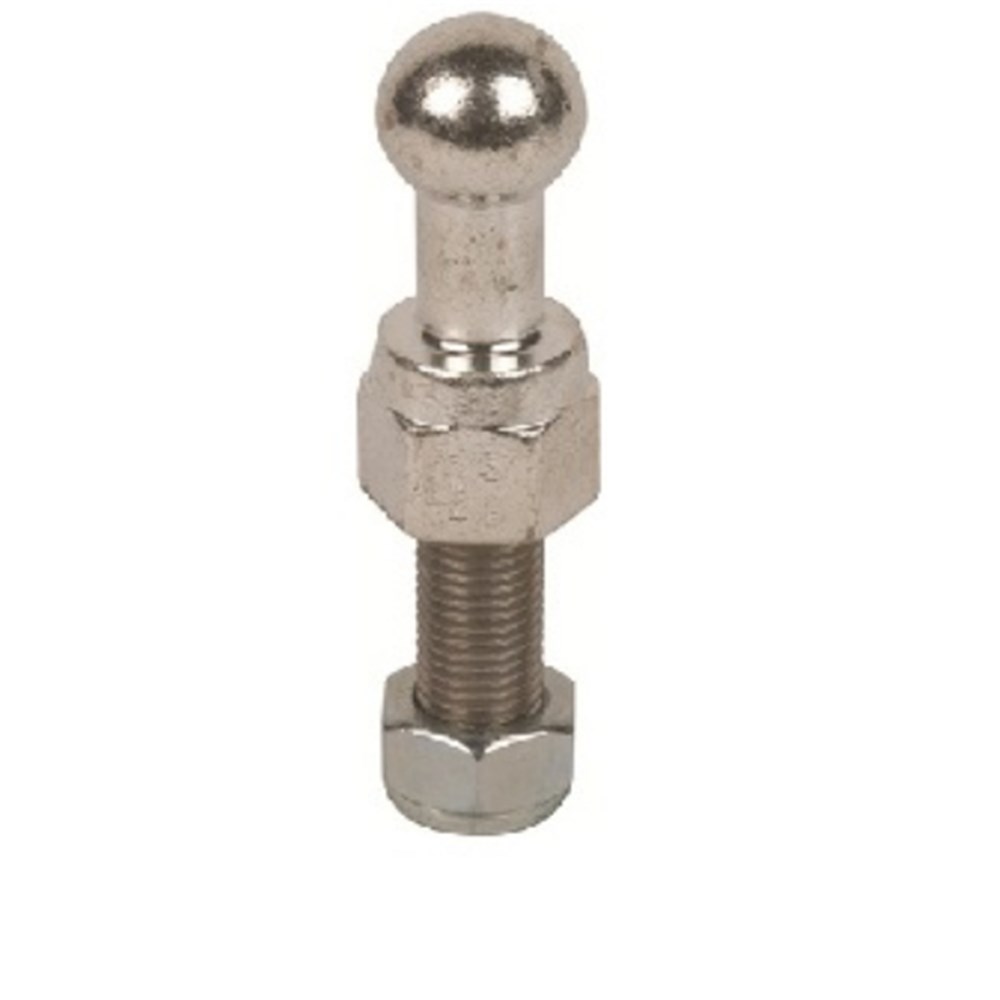

DEHN KFP25M1645SSM Straight Fixed Ball Point With Threaded Bolt and Nut 42000A 29600A 25mm Thread Bolt Mount M16x45mm

Product Code: KFP25M1645SSM

  • Suitable for earthing rods
  • Made from electrolytic copper
  • Rated current up to 42000 A
  • Thread size M16 x 45 mm
  • Complies with EN/IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight with Threaded Pin and Self-locking Nut
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
42000 A
Fixed Ball Point Diameter
25 mm

Mechanical

Cable Cross Section
150 mm2
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
318.9 g
