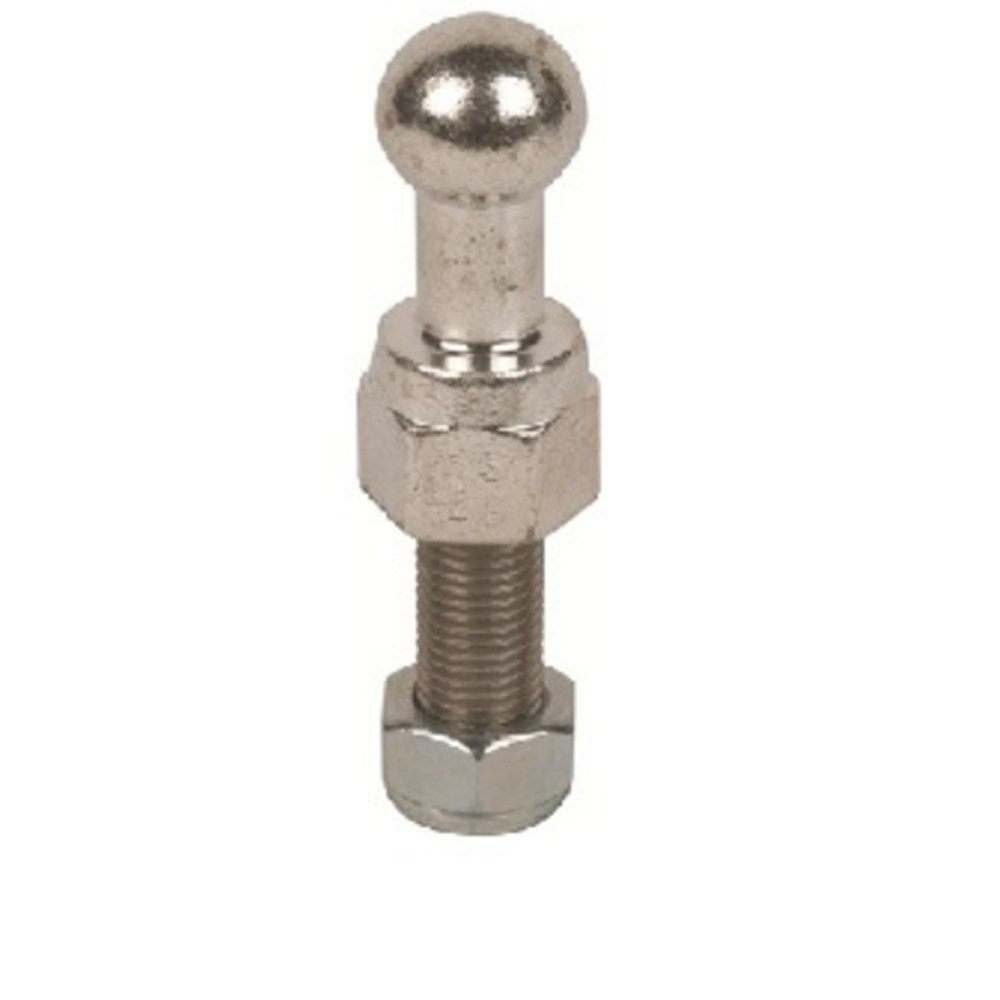

DEHN KFP25M1245SSM Fixed Ball Point 42000A 29600A 25mm Thread Bolt Mount M12x45mm

Product Code: KFP25M1245SSM

  • Handles up to 42,000 A current
  • Fits 25 mm fixed ball point connection
  • Made from electrolytic copper, tin coated
  • Complies with EN/IEC 61230 standards
  • Compatible with earthing rods
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight with Threaded Pin and Self-locking Nut
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
42000 A
Fixed Ball Point Diameter
25 mm

Mechanical

Cable Cross Section
150 mm2
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
278 g

Documents

IPD Product Catalogue V17
