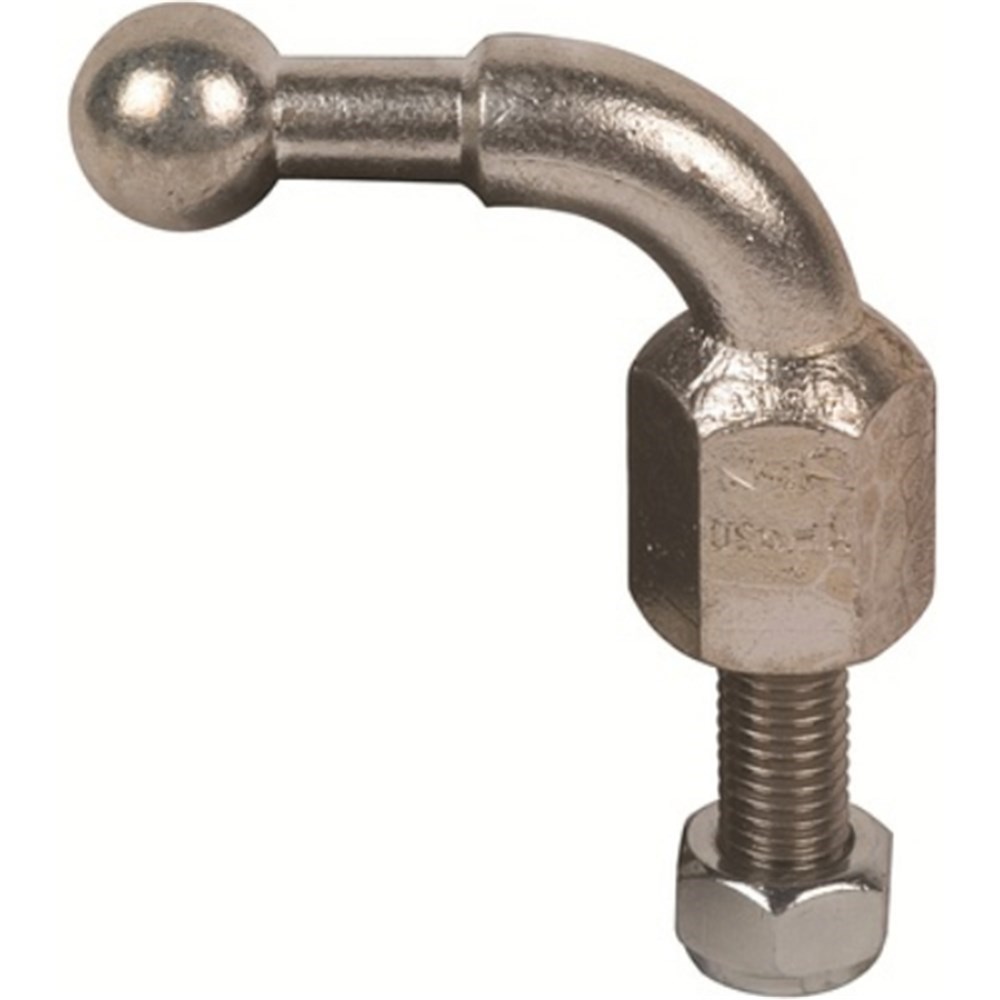

DEHN KFP20W90M1645SSM Angled Fixed Ball Point With Threaded Pin and Nut 19500A 13800A 20mm Thread Bolt Mount M16x45mm

Product Code: KFP20W90M1645SSM

  • Rated current up to 19500 A
  • Compatible with earthing rods
  • Made of electrolytic copper, tin coated
  • 20 mm fixed ball point connection
  • Meets EN/IEC 61230 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
90 Degrees Angled With Threaded Pin And Self - Locking Nut
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
19.5kA
Fixed Ball Point Diameter
20mm

Mechanical

Cable Cross Section
70mm²
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
0.2988kg
