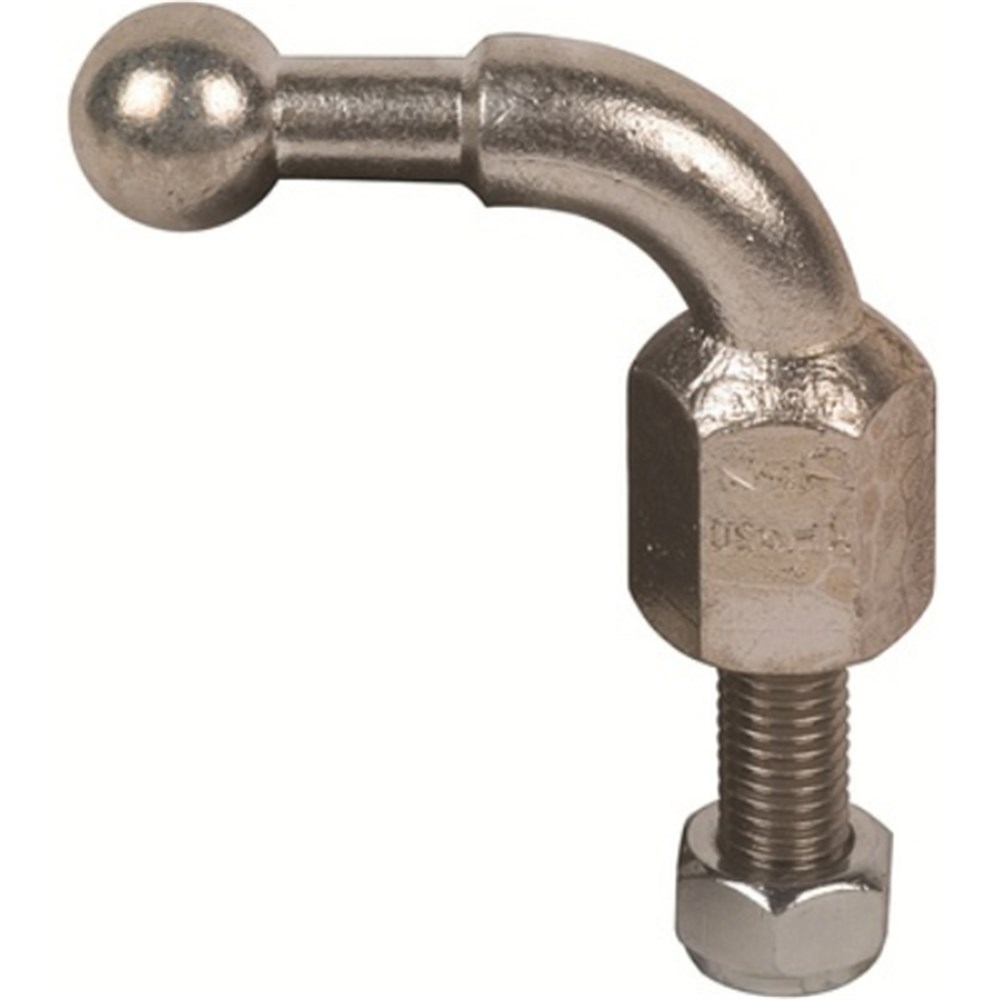

DEHN KFP20W90M1235SSM Angled Fixed Ball Point With Threaded Pin and Nut 19500A 13800A 20mm Thread Bolt Mount M12x35mm

Product Code: KFP20W90M1235SSM

  • Rated current: 19500 A, 13800 A
  • Connection Type: 20 mm Fixed Ball Point
  • Mounting: Thread Bolt with M12 x 35 mm thread
  • Made from electrolytic copper, tin coated
  • Complies with EN/IEC and DIN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
90 degrees angled with Threaded Pin and Self-locking Nut
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
19500 A
Fixed Ball Point Diameter
20 mm

Mechanical

Cable Cross Section
70 mm2
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
259.2 g
