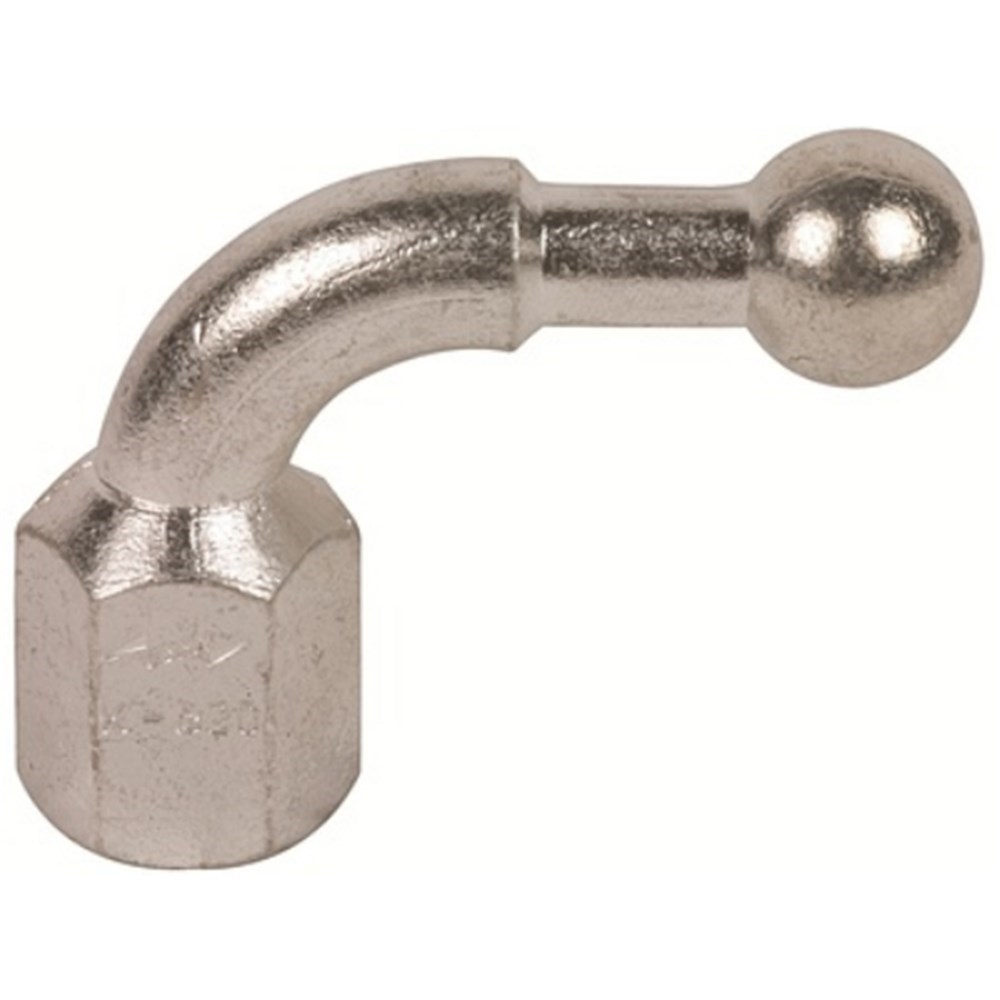

DEHN KFP20W90M12 Angled Fixed Ball Point With M12 Female Thread 19500A 13800A 20mm Internal Thread M12

Product Code: KFP20W90M12

  • Rated current: 19500 A, 13800 A
  • Connection: 20 mm Fixed Ball Point
  • Mounting: Internal Thread, M12 size
  • Material: Electrolytic & Tin Coated Copper
  • Complies with EN/IEC and DIN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
90 Degrees Angled With Female Thread
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
19.5kA
Fixed Ball Point Diameter
20mm

Mechanical

Cable Cross Section
70mm²
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
0.2044kg

Documents

IPD Product Catalogue V17
