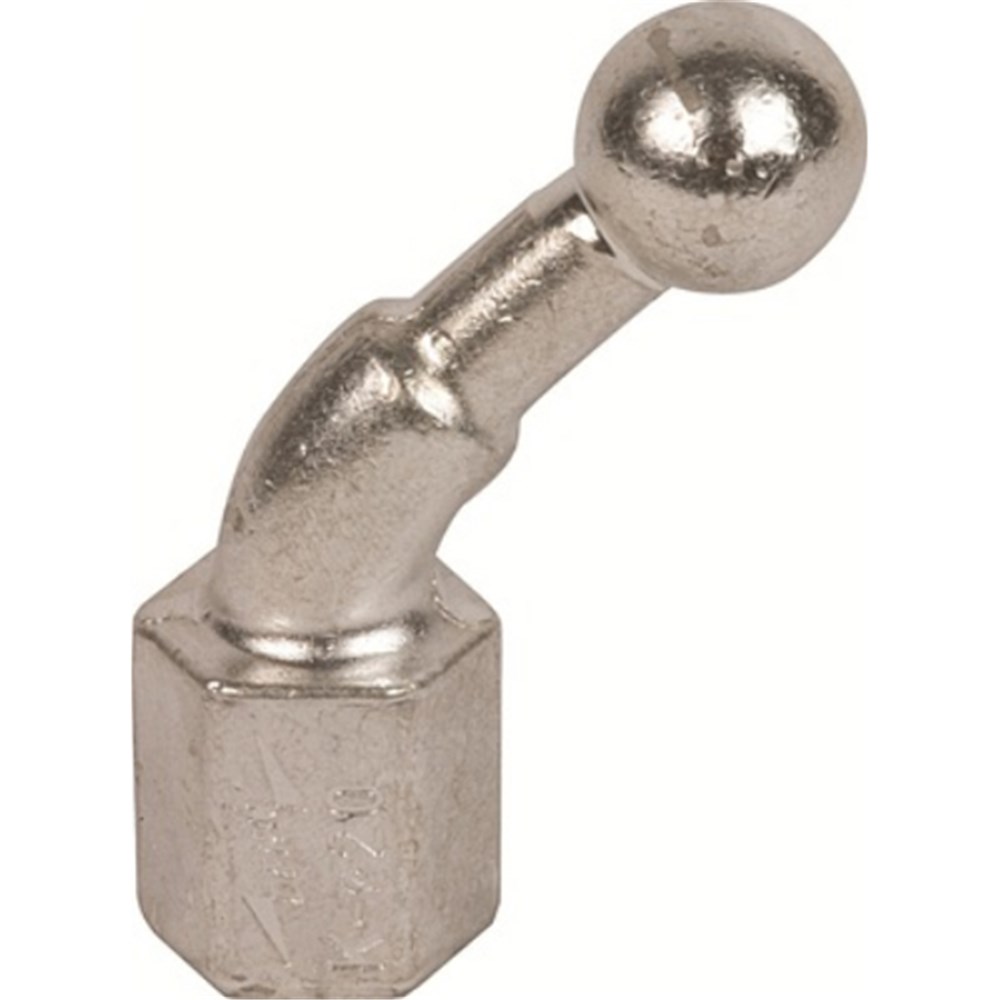

DEHN KFP20W45M16 Angled Fixed Ball Point With M16 Female Thread 19500A 13800A 20mm Internal Thread M16

Product Code: KFP20W45M16

  • Suitable for earthing rods
  • Made from electrolytic copper
  • Tin coated for durability
  • Handles high currents up to 19500 A
  • 20 mm fixed ball point connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
45 Degrees Angled With Female Thread
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
19.5kA
Fixed Ball Point Diameter
20mm

Mechanical

Cable Cross Section
70mm²
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
0.1584kg
