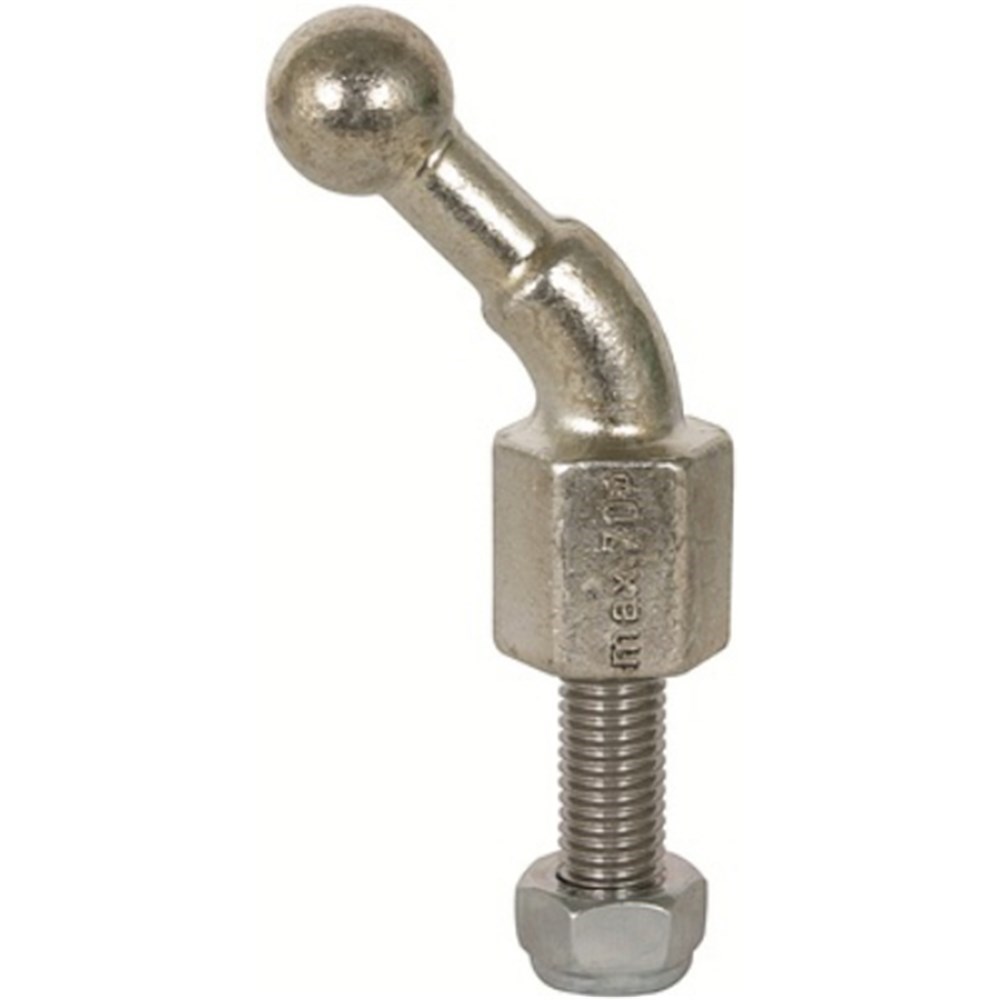

DEHN KFP20W45M1235SSM Angled Fixed Ball Point With Threaded Pin and Nut 19500A 13800A 20mm Thread Bolt Mount M12x35mm

Product Code: KFP20W45M1235SSM

  • Rated for 19500 A and 13800 A currents
  • Compatible with earthing rods
  • Made from electrolytic copper, tin coated
  • Thread bolt mounting with M12 x 35 mm size
  • Complies with EN/IEC 61230 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
45 degrees angled with Threaded Pin and Self-locking Nut
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
19500 A
Fixed Ball Point Diameter
20 mm

Mechanical

Cable Cross Section
70 mm2
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
219.4 g
