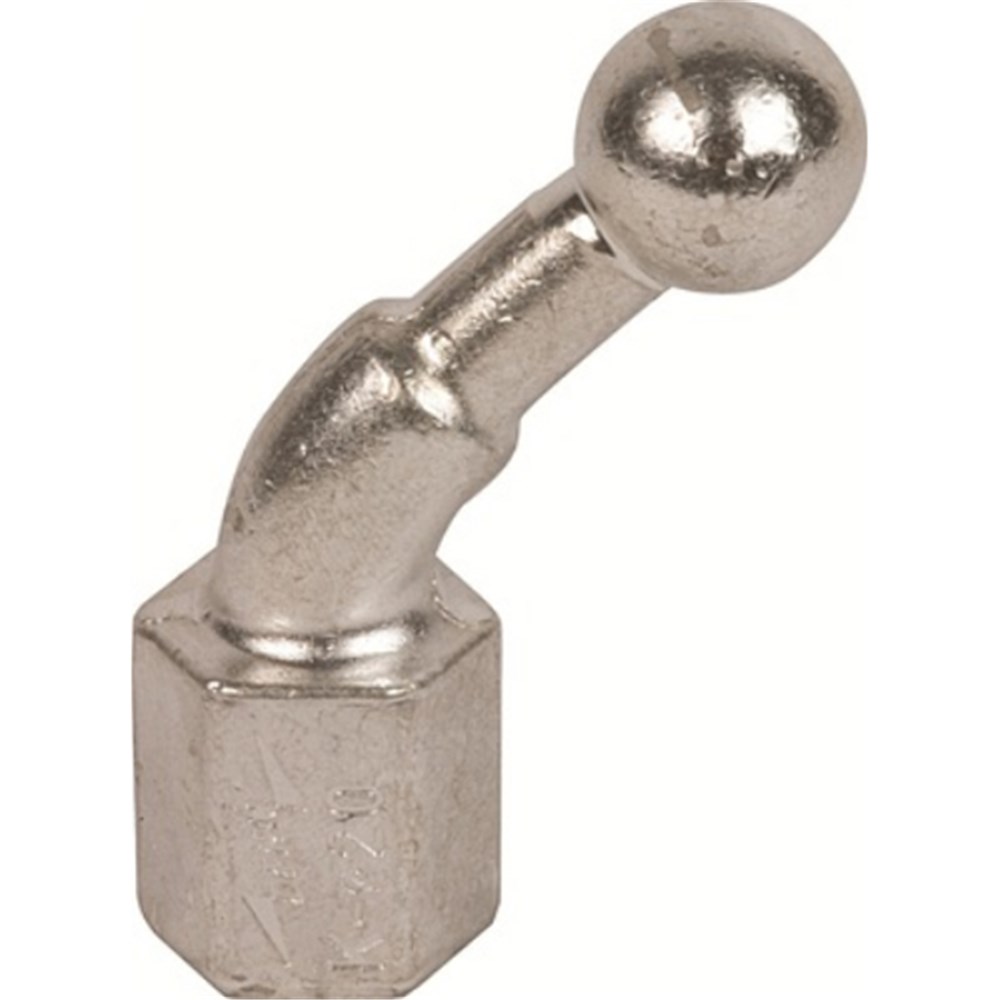

DEHN KFP20W45M12 Angled Fixed Ball Point With M12 Female Thread 19500A 13800A 20mm Internal Thread M12

Product Code: KFP20W45M12

  • Rated Current: 19500 A, 13800 A
  • Connection: 20 mm Fixed Ball Point
  • Mounting: Internal Thread, M12
  • Standards: EN/IEC 61230, DIN VDE 0683-100
  • Material: Electrolytic Tin Coated Copper
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
45 Degrees Angled With Female Thread
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
19.5kA
Fixed Ball Point Diameter
20mm

Mechanical

Cable Cross Section
70mm²
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
0.1724kg

Documents
