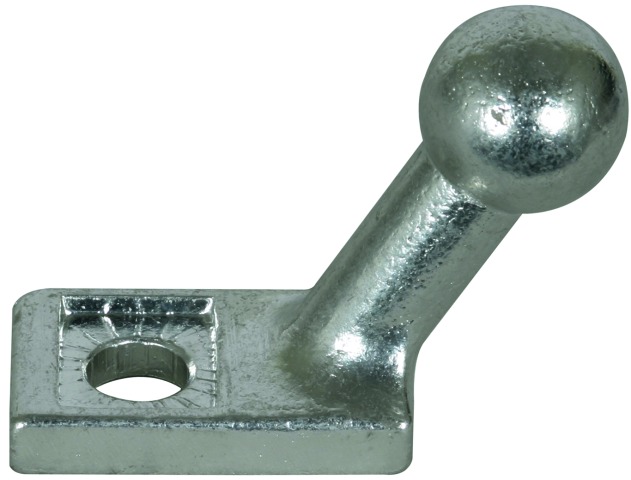

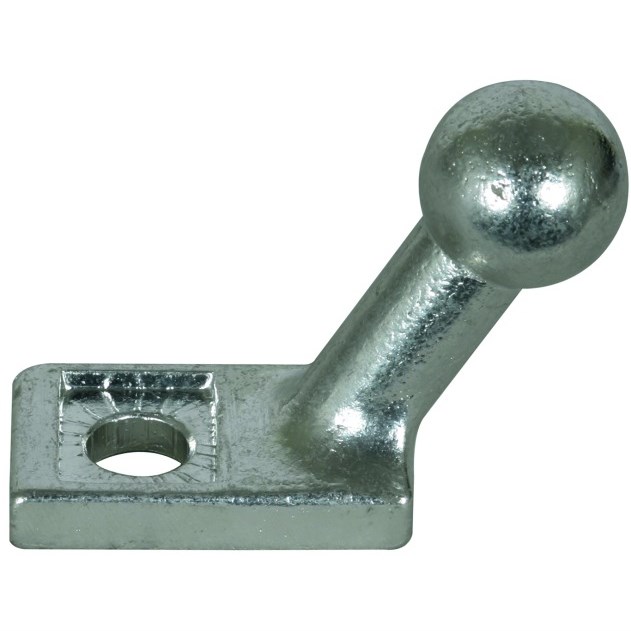

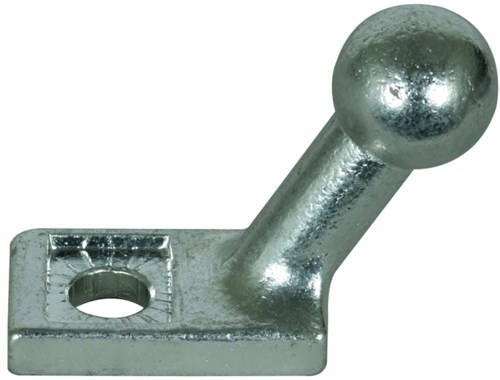

DEHN KFP20SAL12 Fixed Ball Point With Terminal Lug 14000A 9900A 20mm Connector Lug Mount 45mm W 9mm D 30mmH

Product Code: KFP20SAL12

  • Supports 14000 A and 9900 A current ratings
  • Fixed ball point connection type for secure fit
  • Compact size: 45 mm W x 30 mm H x 9 mm D
  • Made from electrolytic copper with tin coating
  • Compliant with EN/IEC and DIN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Angled With Terminal Lug
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
14kA
Fixed Ball Point Diameter
20mm

Mechanical

Cable Cross Section
50mm²
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
0.129kg
