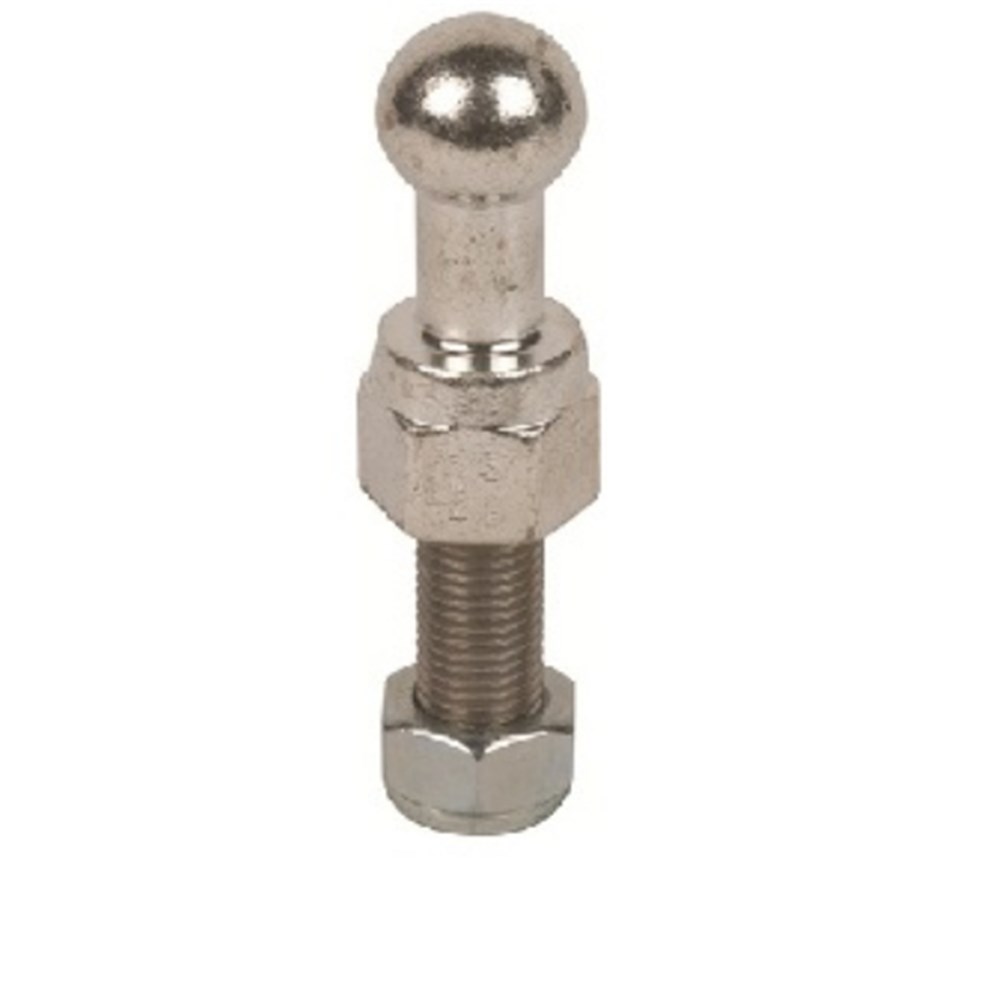

DEHN KFP20M1645SSM Straight Fixed Ball Point With Threaded Bolt and Nut 33500A 23700A 20mm Thread Bolt Mount M16x45mm

Product Code: KFP20M1645SSM

  • Rated for 33,500 A and 23,700 A
  • 20 mm fixed ball point connection
  • Made from electrolytic tin-coated copper
  • Complies with EN/IEC 61230 standards
  • Suitable for use with earthing rods
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight With Threaded Pin And Self - Locking Nut
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
20mm

Mechanical

Cable Cross Section
120mm²
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
0.2868kg

Documents

IPD Product Catalogue V17
