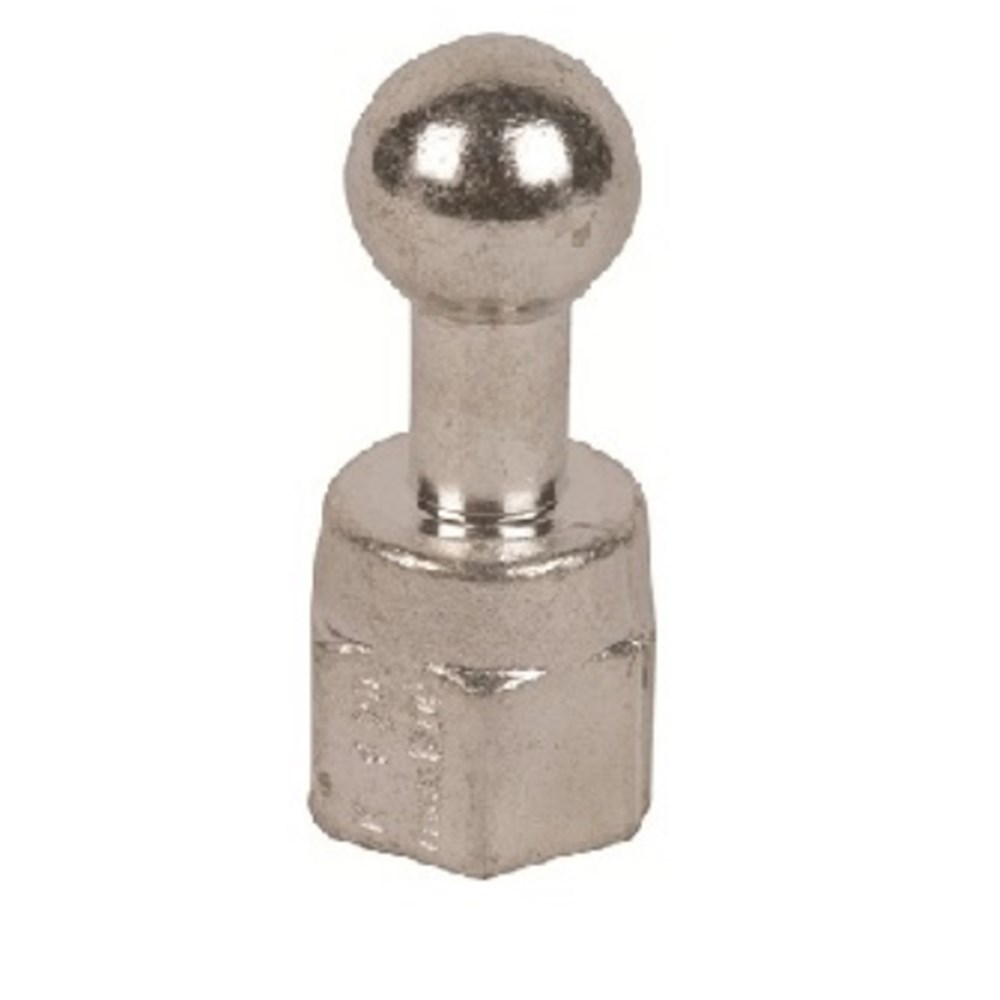

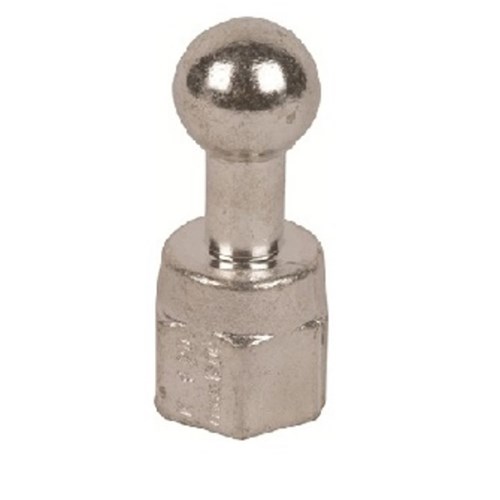

DEHN KFP20M16 Straight Fixed Ball Point With M16 Female Thread 33500A 23700A 20mm Internal Thread M16

Product Code: KFP20M16

  • Supports 33.5kA & 23.7kA currents
  • Fits 20mm fixed ball point connections
  • Internal thread mounting with M16 size
  • Made from electrolytic & tin coated copper
  • Complies with EN/IEC and DIN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight With Female Thread
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN / IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
33.5kA
Fixed Ball Point Diameter
20mm

Mechanical

Cable Cross Section
120mm²
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
0.116kg
