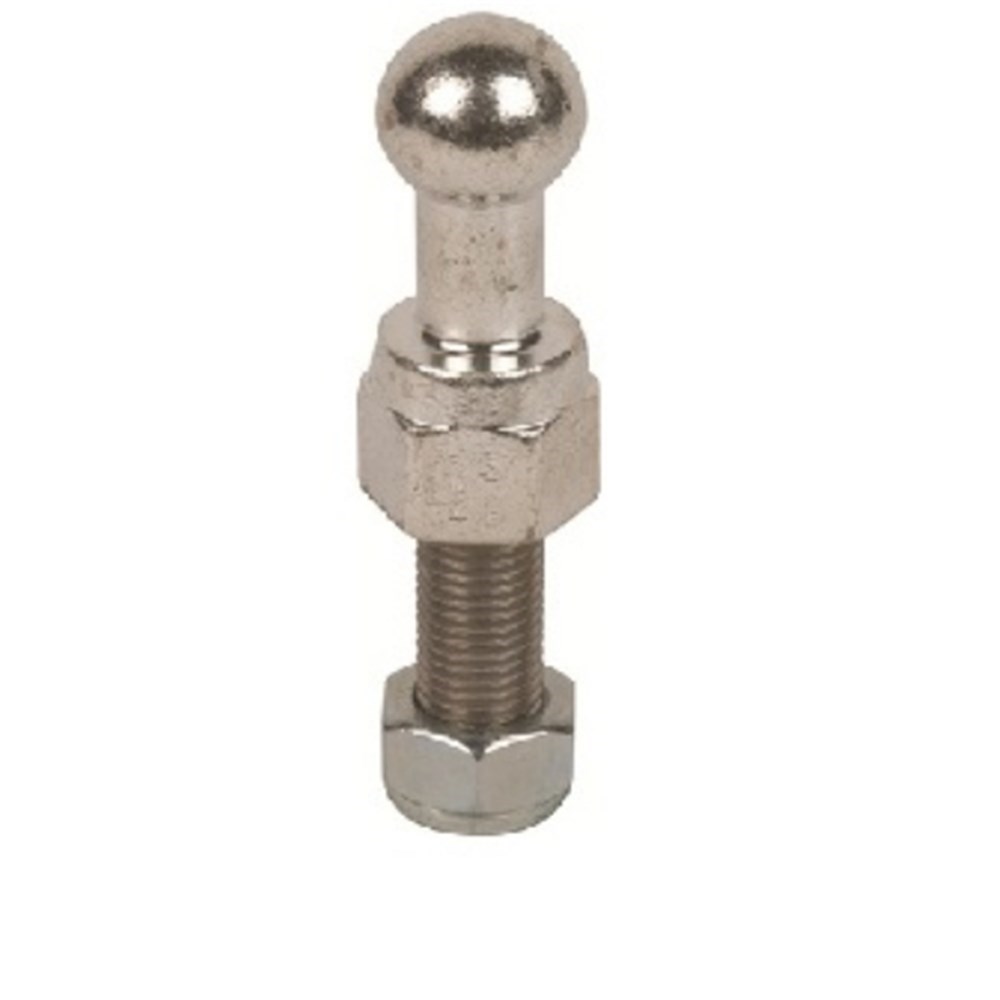

DEHN KFP20M1235SSM Fixed Ball Point 33500A 23700A 20mm Thread Bolt Mount M12x35mm

Product Code: KFP20M1235SSM

  • Handles up to 33,500 A current
  • Fits 20 mm fixed ball point connections
  • Complies with EN/IEC 61230 standards
  • Made from electrolytic copper, tin-coated
  • Designed for use with earthing rods
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Straight with Threaded Pin and Self-locking Nut
Brand
DEHN
Series
Fixed Ball Points
Application
Line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system.

Electrical

Max. Short Circuit Current
33500 A
Fixed Ball Point Diameter
20 mm

Mechanical

Cable Cross Section
120 mm2
Material
E-Cu/gal Sn, StSt A2-70

Dimensions & Physical Data

Weight
183.7 g
