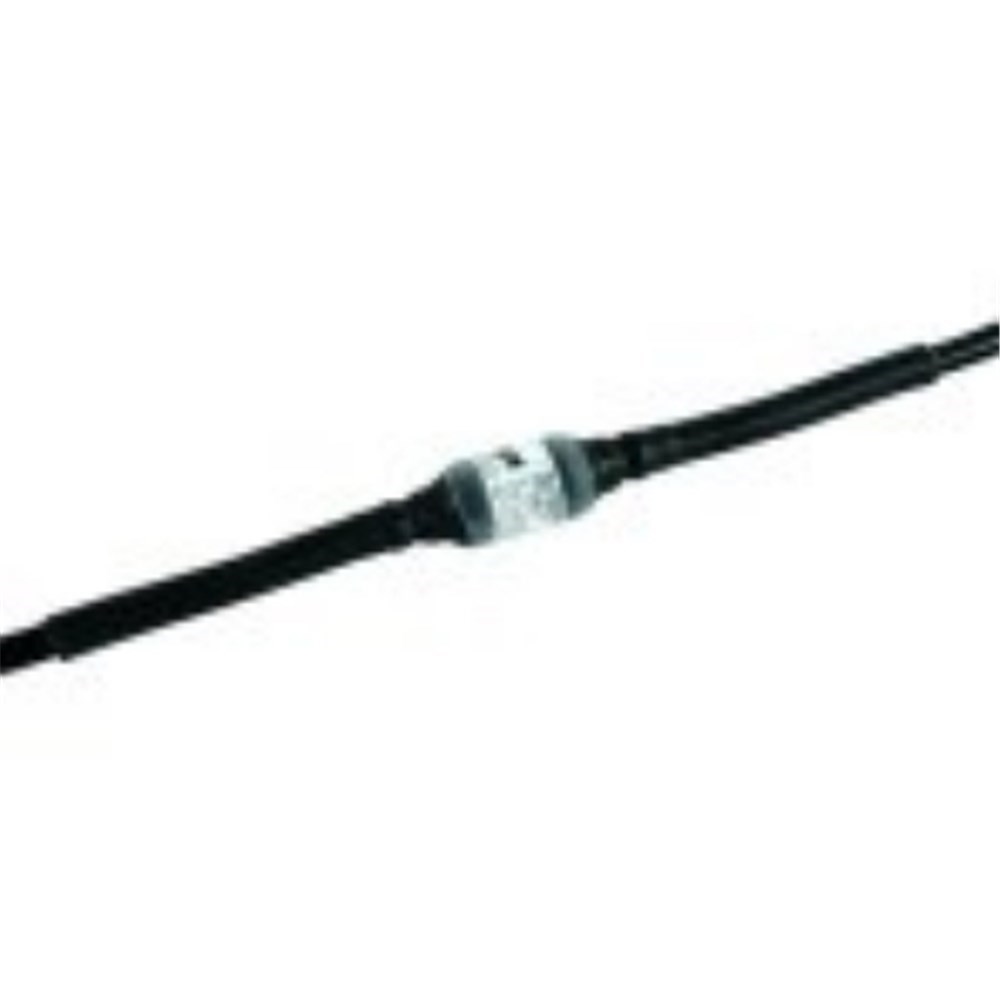

DEHN EXFS100KU Isolating Spark Gap With Connecting Cable 100kA 100kA 0.36mm L 0.27mm W 0.06mm D Plastic Sheath IP67

Product Code: EXFS100KU

  • Handles up to 100 kA current
  • IP67 protection for harsh conditions
  • Compact size with plastic sheath
  • Lightweight at 2.14 kg
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Isolating spark gap
Brand
DEHN
Series
EXFS 100 KU
Application
For indirect connection / earthing of functionally isolated parts of installations under lightning conditions

Electrical

Lightning Impulse Current Iimp (10/350µs)
100 kA
Rated Impulse Sparkover Voltage
≤ 1.25 kV

Mechanical

Material
water-proof plastic sheath
Mounting Method
Connection Bracket

Dimensions & Physical Data

Depth
34mm
Height
34mm
Width
123mm

Environmental

Operating Temperature
-40 °C ... +60 °C
IP Rating
IP 67

Documents

IPD Product Catalogue V17
