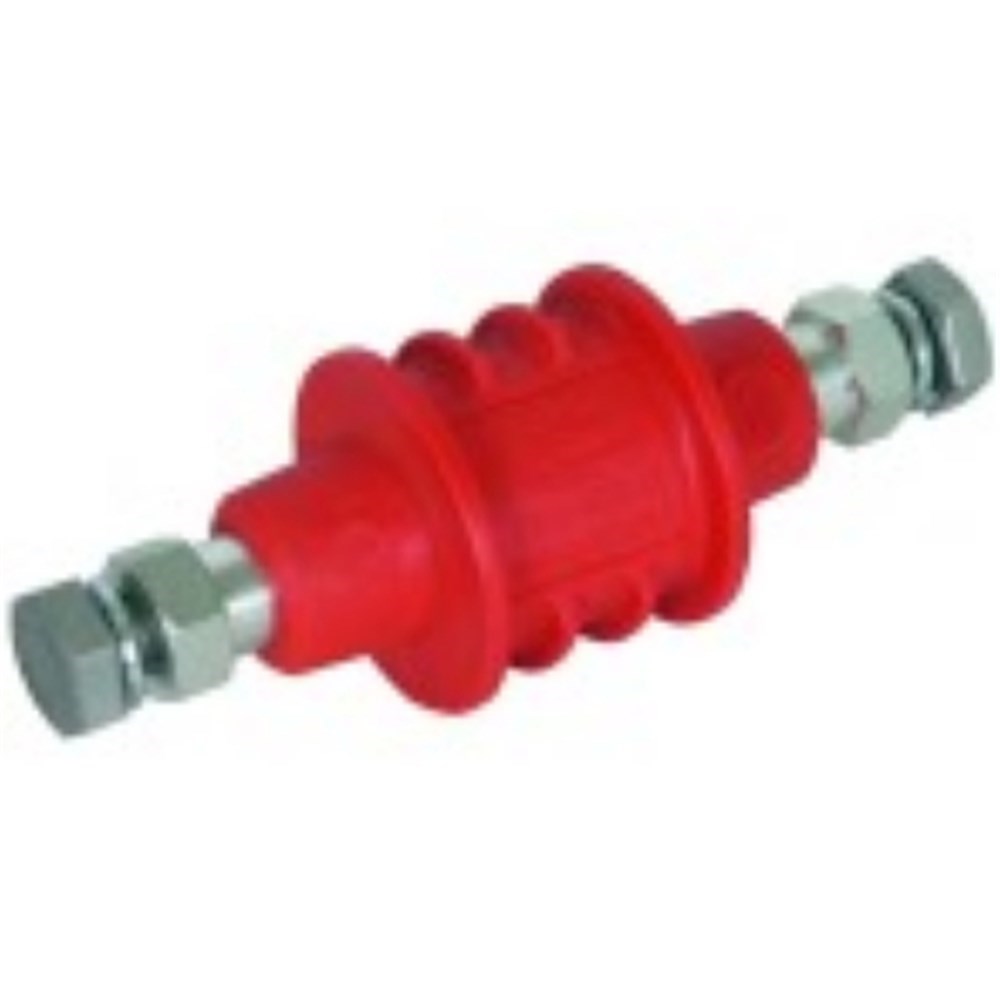

DEHN EXFS100 Isolating Spark Gap Threaded Screw 100kA 100kA 0.16mm L 0.05mm W Plastic Sheath IP67

Product Code: EXFS100

  • Handles up to 100 kA lightning impulse
  • IP67 rated for robust protection
  • Compact size with plastic sheath
  • Lightweight at 0.31 kg
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Isolating spark gap
Brand
DEHN
Series
EXFS 100
Application
For indirect connection / earthing of functionally isolated parts of installations under lightning conditions

Electrical

Lightning Impulse Current Iimp (10/350µs)
100 kA
Rated Impulse Sparkover Voltage
≤ 1.25 kV

Mechanical

Borehole Diameter
10mm
Material
plastic sheath
Mounting Method
Connection Bracket

Dimensions & Physical Data

Depth
45.5mm
Height
45.5mm
Width
100mm

Environmental

Operating Temperature
-20 °C ... +60 °C
IP Rating
IP 67

Documents

IPD Product Catalogue V17
