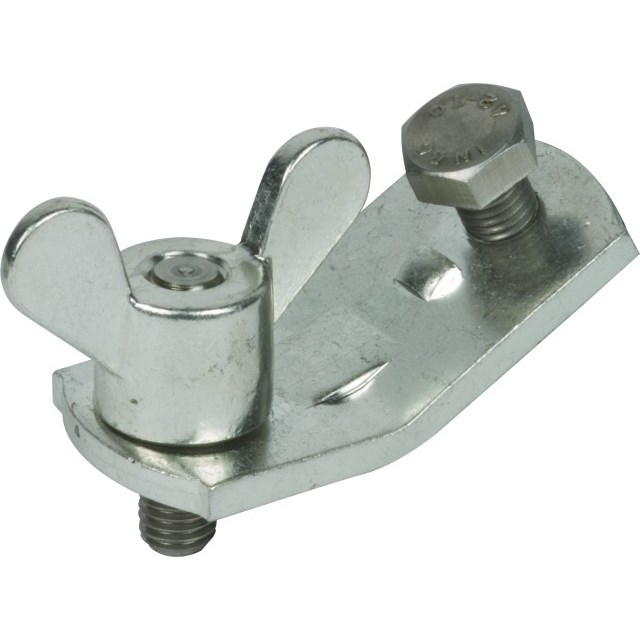

DEHN EASEKFS16 Earth Connection Unit W/M16 Wing Screw 42000A M16 x 15mm

Product Code: EASEKFS16

  • Supports up to 42,000 A current
  • Complies with EN/IEC 61230 standards
  • Lightweight at 350 g
  • Compatible with earthing rods
  • Operates in -25 to 55°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Earth Connecting Element With Wing Bolt
Brand
DEHN
Series
Earth Connecting Elements for Switchgear Installations and Overhead Lines
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
42kA

Mechanical

Cable Cross Section
16mm² to 150mm²
Material
Cu alloy/gal Sn / MCI/gal Zn, Cu alloy/gal Sn / brass/gal Zn, Cu alloy/gal Sn / St/gal Zn, Cu alloy/gal Sn, E-Cu/gal Sn, Hardened/nikel-plated steel, Spring steel

Dimensions & Physical Data

Weight
0.35kg
