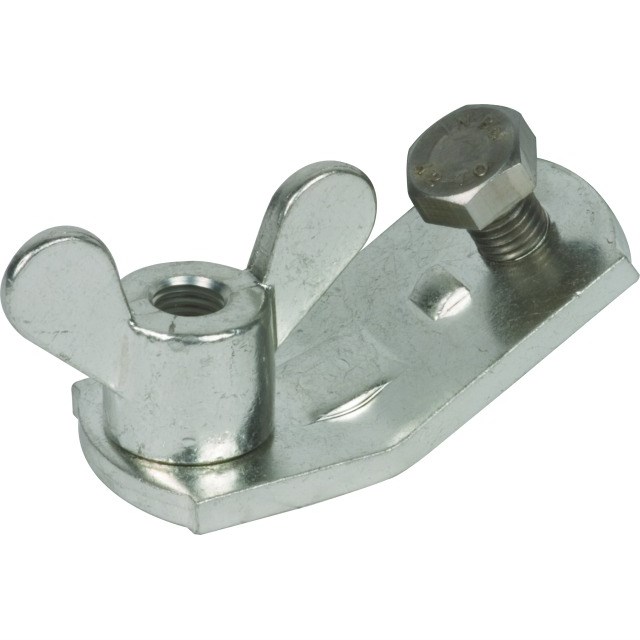

DEHN EASEKFM12 Earth Connection Unit W/M12 Wing Screw 42000A Stud Bolt 89mm W 40mm D

Product Code: EASEKFM12

  • Designed for 42kA rated current
  • Compatible with earthing rods
  • Stud bolt connection type
  • Compact size: 89mm width, 40mm depth
  • Complies with EN/IEC 61230 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Earth Connecting Element With Wing Nut
Brand
DEHN
Series
Earth Connecting Elements for Switchgear Installations and Overhead Lines
Application
Connection elements in accordance with EN / IEC 61230 (DIN VDE 0683-100) for single-pole / three-pole earthing and short-circuiting cables

Electrical

Max. Short Circuit Current
42kA

Mechanical

Cable Cross Section
16mm² to 150mm²
Material
Cu alloy/gal Sn / MCI/gal Zn, Cu alloy/gal Sn / brass/gal Zn, Cu alloy/gal Sn / St/gal Zn, Cu alloy/gal Sn, E-Cu/gal Sn, Hardened/nikel-plated steel, Spring steel

Dimensions & Physical Data

Weight
0.311kg
