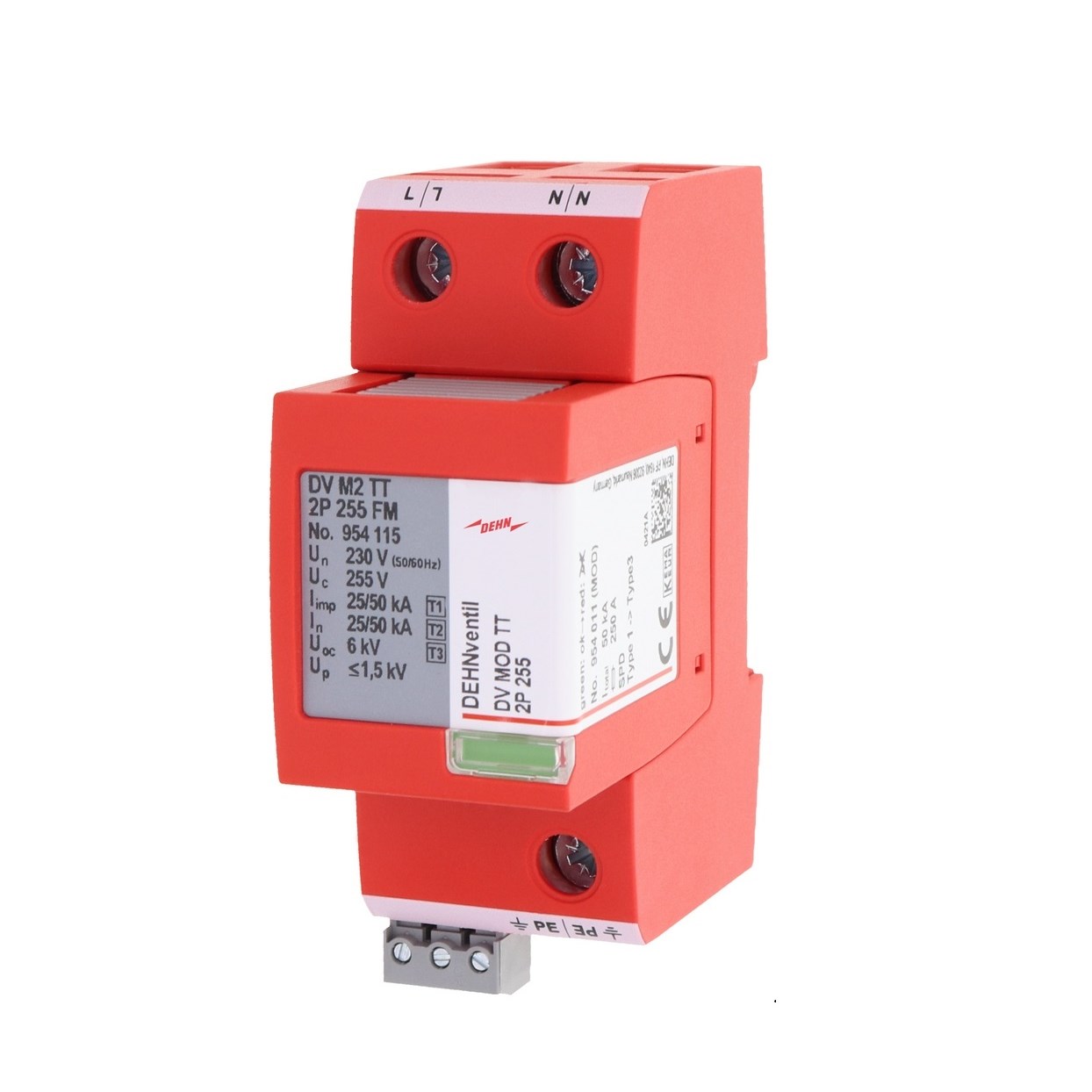

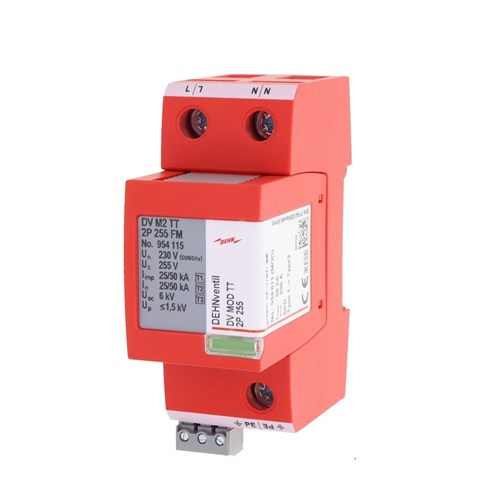

DEHN DVM2TT2P255FM Type-1+2+3 Combined Arrester 50kA (L+N-PE) 1 PH 25kA 50kA 255VAC 0.12mm L 0.09mm W 0.05mm D IP20

Product Code: DVM2TT2P255FM

  • Surge protection for 255 VAC systems
  • Handles currents of 25 kA, 50 kA
  • IP20 rating ensures basic protection
  • Quick response time of <= 100 ns
  • Compatible with 1 Ph TT-A systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Combined Lightning Current and Surge Arrester
Brand
DEHN
Series
DV M2 TT FM
Application
Critical electronics

Electrical

Lightning Impulse Current Iimp (10/350&#181;s)
25 / 50 kA
Max. Backup Fuse
250 A gG
Max. Continuous Operating Voltage (AC/DC)
255 V
Nominal Voltage
230 V
Voltage Protection Level Up
&#8804; 1.5 kV
Short Circuit Current Rating
50 kArms / 100 Arms
Nominal Discharge Current Inom (8/20&#181;s)
25 / 50 kA

Mechanical

Mounting Method
35 mm DIN rails
Terminal Size
max. 1.5 mm2 solid / fine-stranded

Dimensions

Depth
90mm
Height
73mm
Width
36mm

Environmental

Operating Temperature
-40 °C ... +80 °C
IP Rating
IP 20
