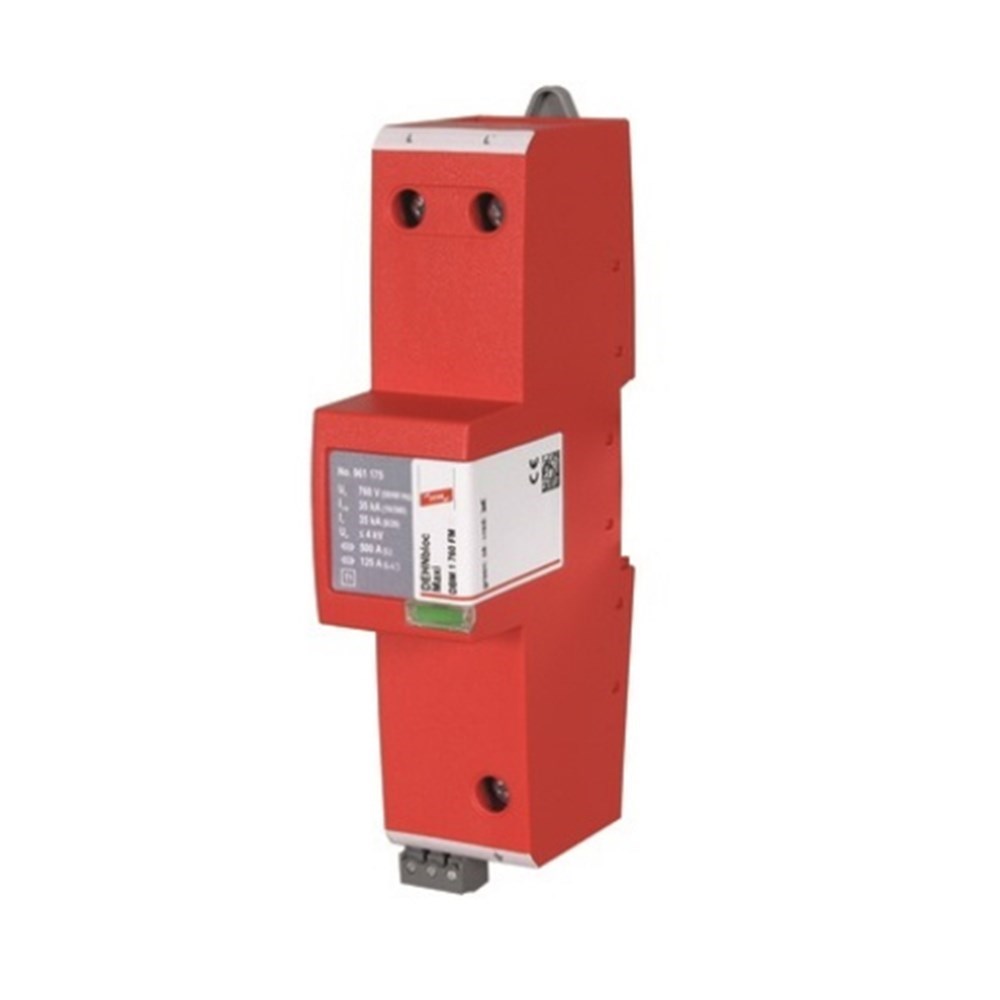

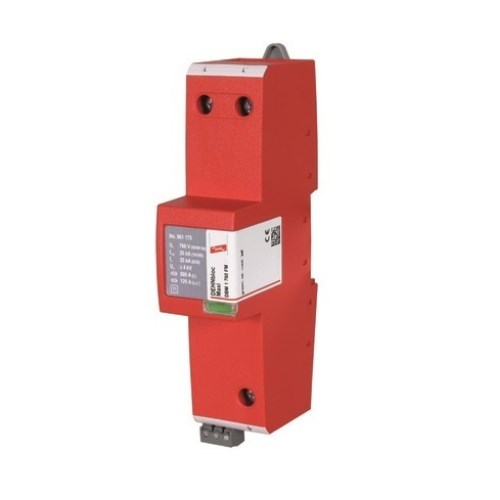

DEHN DVCI1255FM Type-1+2 Combined Lightning Current and Surge Arrester 25kA 1-P 25kA 255VAC IP20

Product Code: DVCI1255FM

  • Surge protection with 25 kA current rating
  • Compact DIN rail mounting design
  • Fast response time of <= 100 ns
  • IP20 protection for indoor use
  • Handles lightning currents up to 50 kArms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Combined Lightning Current and Surge Arrester
Brand
DEHN
Series
DVCI FM
Application
Sub-distribution panels,Dedicated equipment supply lines

Electrical

Lightning Impulse Current Iimp (10/350&#181;s)
25 kA
Max. Continuous Operating Voltage (AC/DC)
255 V
Nominal Voltage
230 V
Voltage Protection Level Up
&#8804; 1.5 kV
Nominal Discharge Current Inom (8/20&#181;s)
25 kA

Mechanical

Mounting Method
35 mm DIN rails
Terminal Size
max. 1.5 mm² solid / flexible

Dimensions

Depth
150mm
Height
73mm
Width
36mm

Environmental

Operating Temperature
-40 °C ... +80 °C
IP Rating
IP 20
