Specifications

Product Type Combined Lightning Current and Surge Arrester	Brand DEHN	Series DEHNvenCI
Application Single-pole combined lightning current and surge arrester with integrated backup fuse ensures maximum system availability. For protecting low-voltage consumer installations against surges and even direct lightning strikes.

Lightning Impulse Current Iimp (10/350µs) 25kA	Nominal Voltage 230V AC	Voltage Protection Level Up 1500V
Short Circuit Current Rating 100kA	Nominal Discharge Current Inom (8/20µs) 25kA	No. of Poles 1P
Max. Continuous Operating Voltage 255 V AC

Terminal Size

10 to 50 mm2

No. of Modules Width

Operating Temperature

-40°C to 80°C

IP Rating

IP20

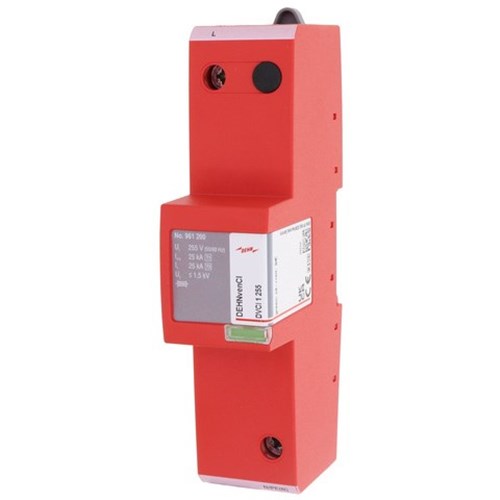

DEHN DVCI1255 Combined Lightning Current and Surge Arrester With Fuse 25kA 1-P 255VAC IP20
