Specifications

Product Type Combined Lightning Current And Surge Arrester	Brand DEHN	Series DEHNvap EMOB
Application For use in three-phase TT and TN-S systems (3+1 configuration), particularly in power supply systems for charging infrastructure

Lightning Impulse Current Iimp (10/350µs) 12.5kA, 50kA	Max. Backup Fuse 250A gG	Nominal Voltage 230V AC, 400V AC
Voltage Protection Level Up 1500V	Alarm Contact Changeover contact	Nominal Discharge Current Inom (8/20µs) 25kA, 100kA
No. of Poles 4P	Max. Continuous Operating Voltage 255 V AC

Terminal Size

1.5 to 35 mm2

Depth 62mm	Height 90mm	Width 72mm
No. of Modules Width 4

Operating Temperature

-40°C to 80°C

IP Rating

IP20

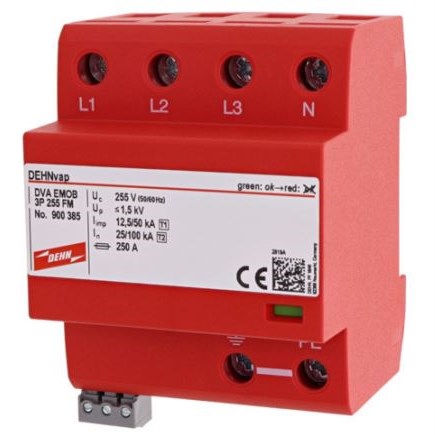

DEHN DVAEMOB3P255 Type-1+2 Combined Arrester 3 PH 0.12mm L 0.09mm W
