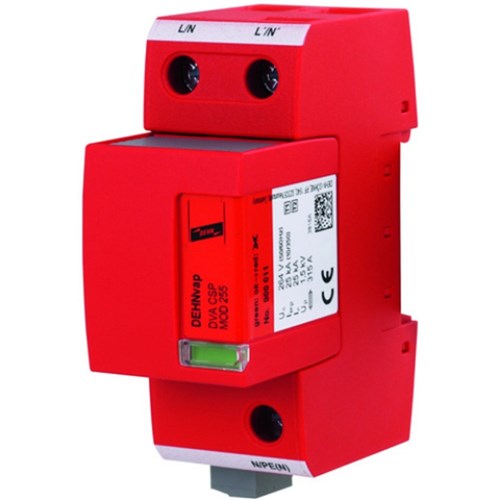

DEHN DVACSP1P255FM Combined Lightning Current and Surge Arrester 25kA 25kA 100kA 264VAC DIN Rail Mount IP20

Product Code: DVACSP1P255FM

  • Surge protection for 264 VAC systems
  • Handles currents up to 100 kA
  • Quick response time of <= 100 ns
  • DIN rail mountable for easy installation
  • IP20 rated for basic protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Combined Lightning Current and Surge Arrester
Brand
DEHN
Series
DVA CSP FM
Application
single-phase incoming boards

Electrical

Lightning Impulse Current Iimp (10/350&#181;s)
25 kA
Max. Backup Fuse
315 A gG
Max. Continuous Operating Voltage (AC/DC)
264 V
Nominal Voltage
230 V
Voltage Protection Level Up
&#8804; 1.5 kV
Nominal Discharge Current Inom (8/20&#181;s)
25 / 100 kA

Mechanical

Mounting Method
35 mm DIN rails
Terminal Size
max. 1.5 mm² solid / flexible

Dimensions

Depth
90mm
Height
73mm
Width
36mm

Environmental

Operating Temperature
-40 °C ... +80 °C
IP Rating
IP 20
