Specifications

Product Type Combined Lightning Current and Surge Arrester	Brand DEHN	Series DEHNshield
Application Application-optimised multipole combined lightning current and surge arrester which fulfils the minimum requirements on the lightning current discharge capacity according to IEC 60364-5-53 and ensures compact lightning equipotential bonding including protection of terminal equipment.

Lightning Impulse Current Iimp (10/350µs) 12.5kA, 25kA	Max. Backup Fuse 160A gG	Nominal Voltage 230V AC
Voltage Protection Level Up 1500V	Alarm Contact Changeover contact	Nominal Discharge Current Inom (8/20µs) 12.5kA, 25kA
No. of Poles 2P	Max. Continuous Operating Voltage 255 V AC

Terminal Size

1.5 to 35 mm2

No. of Modules Width

Operating Temperature

-40°C to 80°C

IP Rating

IP20

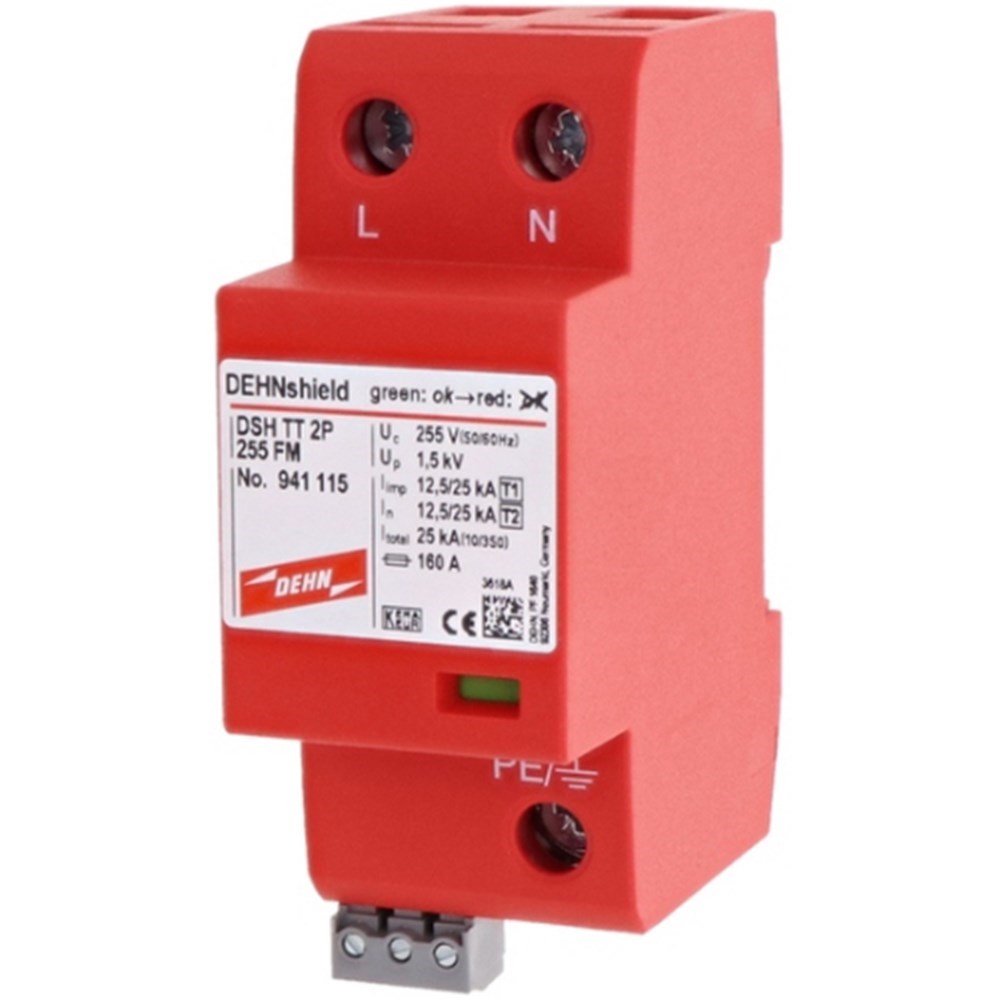

DEHN DSHTT2P255FM Combined Lightning Current and Surge Arrester 12.5kA 25kA 1 PH 12.5kA 25kA 255VAC IP20
