Specifications

Product Type Combined Lightning Current and Surge Arrester	Brand DEHN	Series DEHNshield
Application Application-optimised multipole combined lightning current and surge arrester which fulfils the minimum requirements on the lightning current discharge capacity according to IEC 60364-5-53 and ensures compact lightning equipotential bonding including protection of terminal equipment.

Lightning Impulse Current Iimp (10/350µs) 12.5kA, 25kA	Max. Backup Fuse 160A gG	Nominal Voltage 230V AC
Voltage Protection Level Up 1500V	Nominal Discharge Current Inom (8/20µs) 12.5kA, 25kA	No. of Poles 2P
Max. Continuous Operating Voltage 255 V AC

Terminal Size

1.5 to 35 mm2

No. of Modules Width

Operating Temperature

-40°C to 80°C

IP Rating

IP20

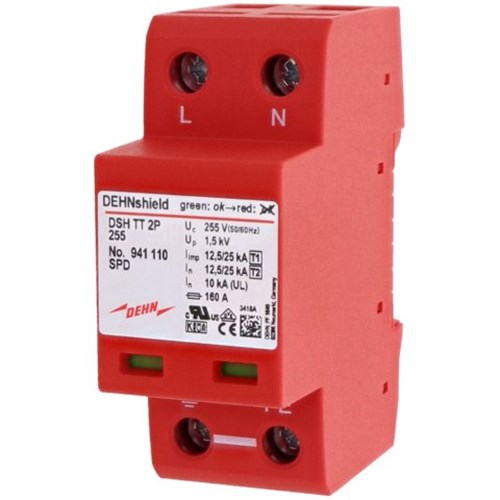

DEHN DSHTT2P255 Combined Lightning Current and Surge Arrester 25kA 2-P 255VAC Thermoplastic IP20
