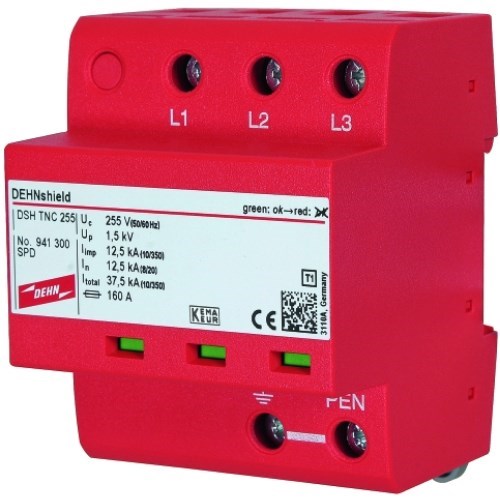

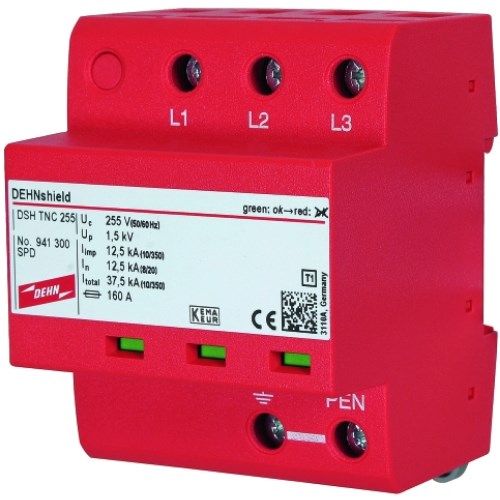

DEHN DSHTNC255FM Type-1+2 Combined Lightning Current and Surge Arrester 12.5kA 3 PH 12.5kA 255VAC IP20

Product Code: DSHTNC255FM

  • Suitable for 3-phase TN-C systems
  • Rated voltage: 255 VAC
  • Lightning impulse current: 12.5 kA
  • Quick response time: <= 100 ns
  • DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Combined Lightning Current and Surge Arrester
Brand
DEHN
Series
DSH TNC FM
Application
TNC earthing systems

Electrical

Lightning Impulse Current Iimp (10/350&#181;s)
12.5 kA
Max. Continuous Operating Voltage (AC/DC)
255 V
Nominal Voltage
230 / 400 V
Voltage Protection Level Up
&#8804; 1.5 Kv
Nominal Discharge Current Inom (8/20&#181;s)
12.5 / 37.5 kA

Mechanical

Mounting Method
35 mm DIN rails
Terminal Size
max. 1.5 mm² solid / flexible

Dimensions

Depth
90mm
Height
68mm
Width
72mm

Environmental

Operating Temperature
-40 °C ... +80 °C
IP Rating
IP 20

Documents

IPD Product Catalogue V17
