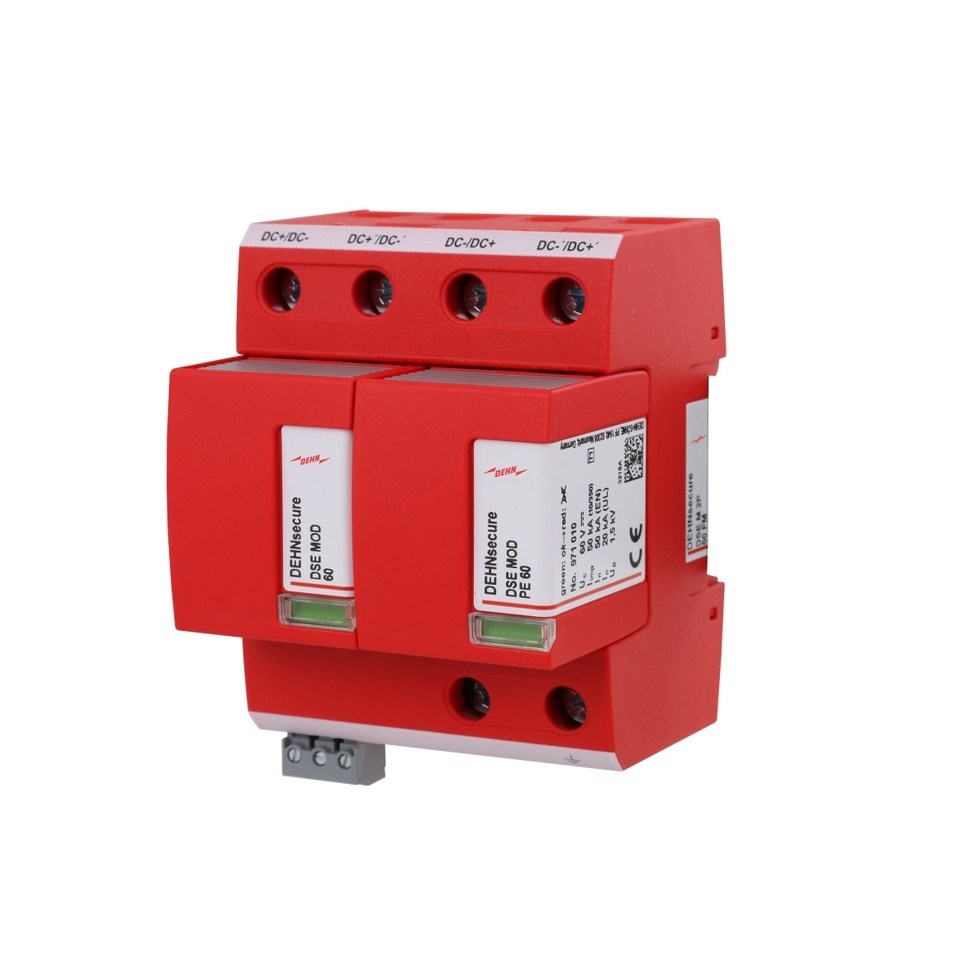

DEHN DSEM2P60FM Type-1 Lightning Current Arrester 25kA 50kA 60VDC DIN Rail Mount 0.12mm L 0.09mm W IP20

Product Code: DSEM2P60FM

  • Surge protection for DC circuits
  • Quick response time <= 100 ns
  • Handles lightning currents up to 50 kA
  • Type 1 SPD with IP20 protection
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Dehnsecure M 2P (Fm)
Brand
DEHN
Series
DEHNsecure modular
Application
For protecting d.c. consumer installations against surges and even direct lightning strikes.

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA, 50kA
Max. Backup Fuse
250A gG
Voltage Protection Level Up
1500V
Short Circuit Current Rating
17kA
Alarm Contact
Changeover contact
No. of Poles
2P
Max. Continuous Operating Voltage
60 V DC

Mechanical

Terminal Size
10 to 50 mm2

Dimensions & Physical Data

No. of Modules Width
4

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
