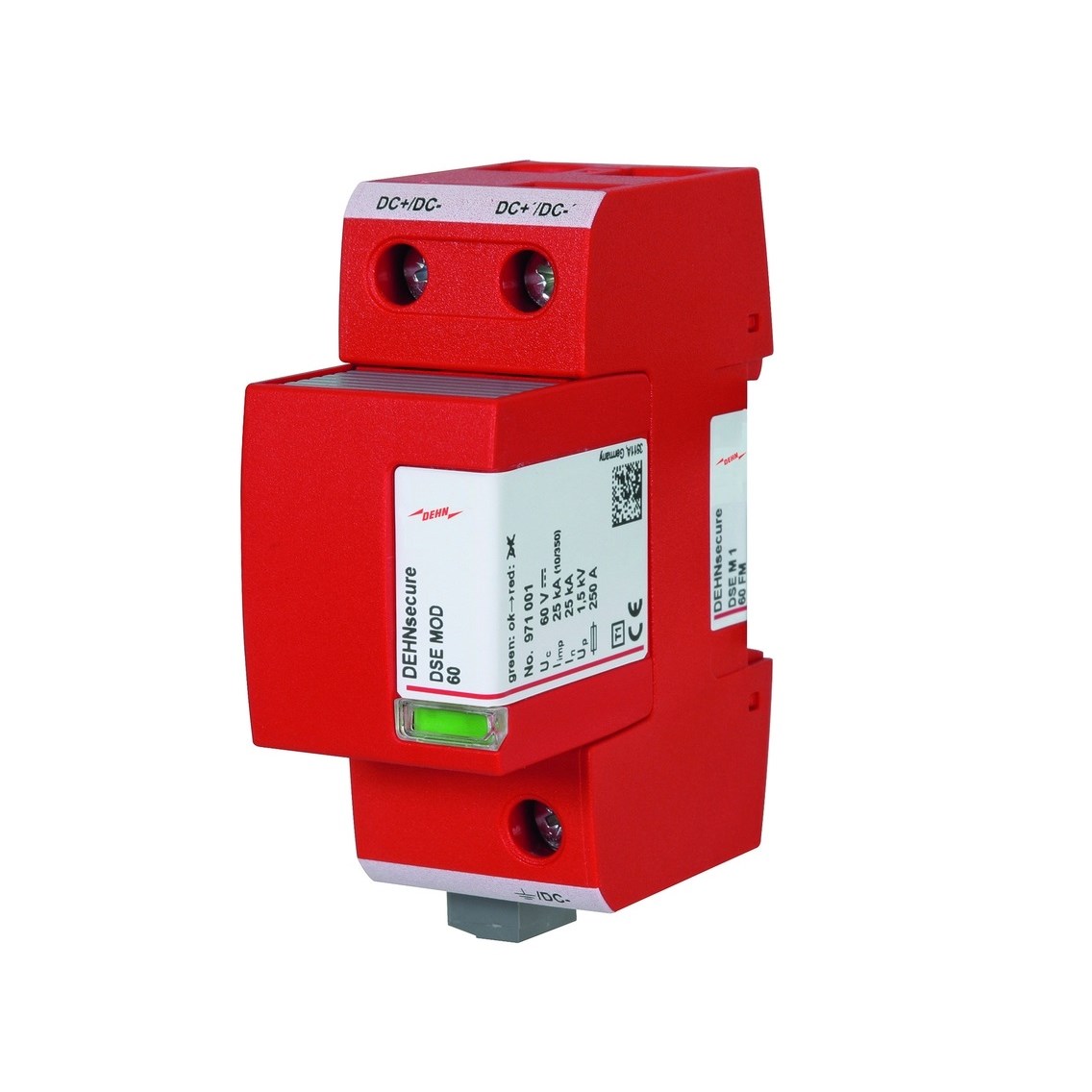

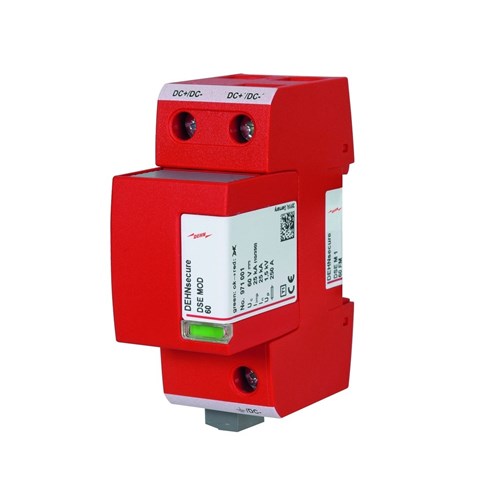

DEHN DSEM160FM Type-1 Lightning Current Arrester 25kA 60VDC DIN Rail Mount 0.1mm L 0.07mm W 0.04mm D IP20

Product Code: DSEM160FM

  • 60 VDC surge protection for DC circuits
  • IP20-rated for secure indoor use
  • Quick response time of <= 100 ns
  • Handles lightning impulse current of 25 kA
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Dehnsecure M 1 Fm
Brand
DEHN
Series
DEHNsecure modular
Application
For protecting d.c. consumer installations against surges and even direct lightning strikes.

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA
Max. Backup Fuse
250A gG
Voltage Protection Level Up
1500V
Short Circuit Current Rating
25kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
25kA
No. of Poles
1P
Max. Continuous Operating Voltage
60 V DC

Mechanical

Terminal Size
10 to 50 mm2

Dimensions & Physical Data

No. of Modules Width
2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
