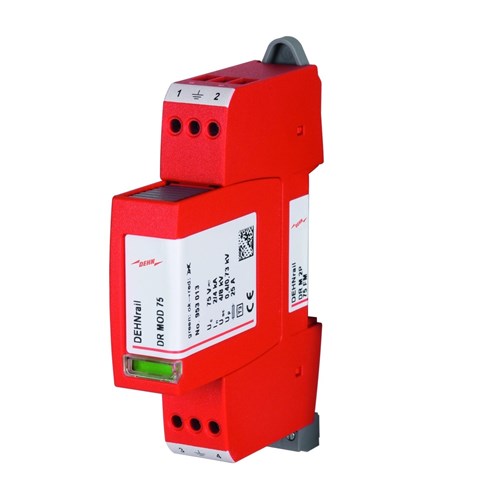

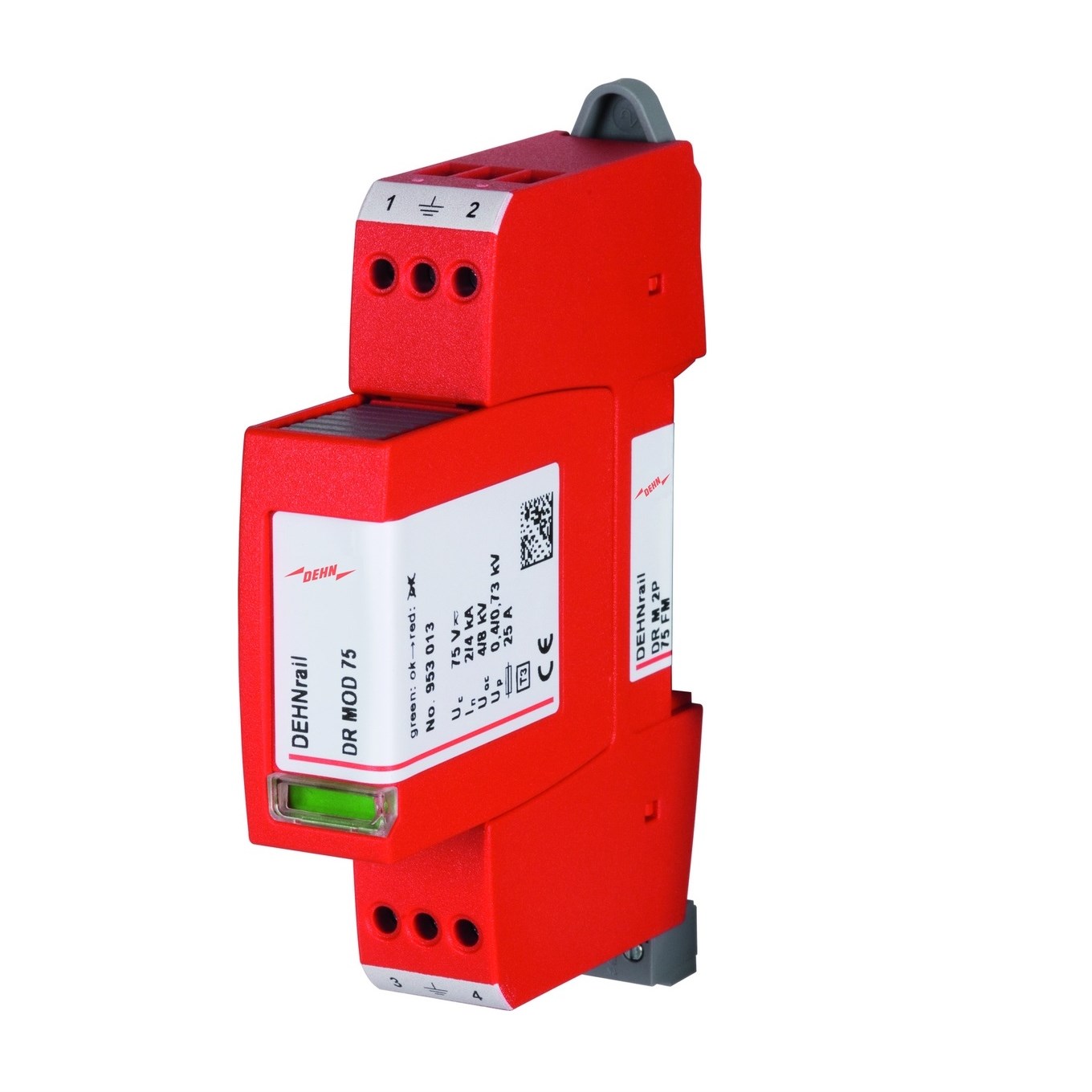

DEHN DRM2P75FM M-Surge Arrester 2kA 75VAC DIN Rail Mount IP20

Product Code: DRM2P75FM

  • 75 VAC, 2 kA surge protection
  • IP20 rating for indoor use
  • Quick response: <= 25 ns, <= 100 ns
  • Type 3 SPD for low-voltage systems
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Two - Pole Surge Arrester
Brand
DEHN
Series
DEHNrail modular
Application
For protecting terminal devices of industrial electronics equipment

Electrical

Max. Backup Fuse
25A gG or B 25A
Nominal Voltage
60V AC
Voltage Protection Level Up
400V, 730V
Short Circuit Current Rating
6kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
2kA
No. of Poles
2P
Max. Continuous Operating Voltage
75 V AC, 75 V DC

Mechanical

Terminal Size
0.5 to 4 mm2 solid, 0.5 to 2.5 mm2 flexible

Dimensions & Physical Data

Depth
66mm
Height
90mm
Width
18mm
No. of Modules Width
1

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
