Specifications

Product Type Two - Pole Surge Arrester	Brand DEHN	Series DEHNrail modular
Application For protecting terminal devices of industrial electronics equipment

Max. Backup Fuse 25A gG or B 25A	Nominal Voltage 60V AC	Voltage Protection Level Up 400V, 730V
Short Circuit Current Rating 6kA	Nominal Discharge Current Inom (8/20µs) 2kA	No. of Poles 2P
Max. Continuous Operating Voltage 75 V AC, 75 V DC

Terminal Size

0.5 to 4 mm2 solid, 0.5 to 2.5 mm2 flexible

Depth 66mm	Height 90mm	Width 18mm
No. of Modules Width 1

Operating Temperature

-40°C to 80°C

IP Rating

IP20

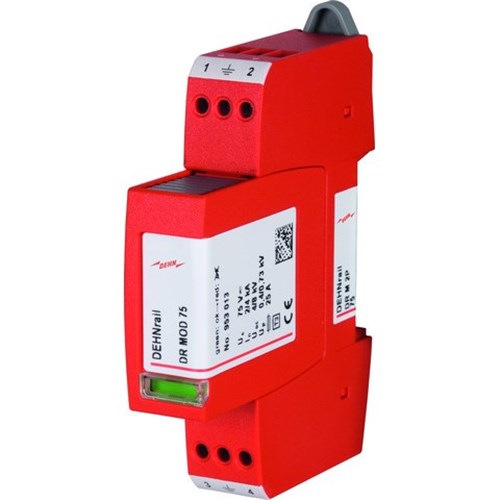

DEHN DRM2P75 Surge Arrester 2-P 1 PH 2kA 75VDC DIN Rail Mount IP20
