Specifications

Product Type Two - Pole Surge Arrester	Brand DEHN	Series DEHNrail modular
Application For protecting terminal devices of industrial electronics equipment

Max. Backup Fuse 25A gG or B 25A	Nominal Voltage 48V AC	Voltage Protection Level Up 350V, 730V
Short Circuit Current Rating 6kA	Alarm Contact Changeover contact	Nominal Discharge Current Inom (8/20µs) 1kA
No. of Poles 2P	Max. Continuous Operating Voltage 60 V AC, 60 V DC

Terminal Size

0.5 to 4 mm2 solid, 0.5 to 2.5 mm2 flexible

Depth 66mm	Height 90mm	Width 18mm
No. of Modules Width 1

Operating Temperature

-40°C to 80°C

IP Rating

IP20

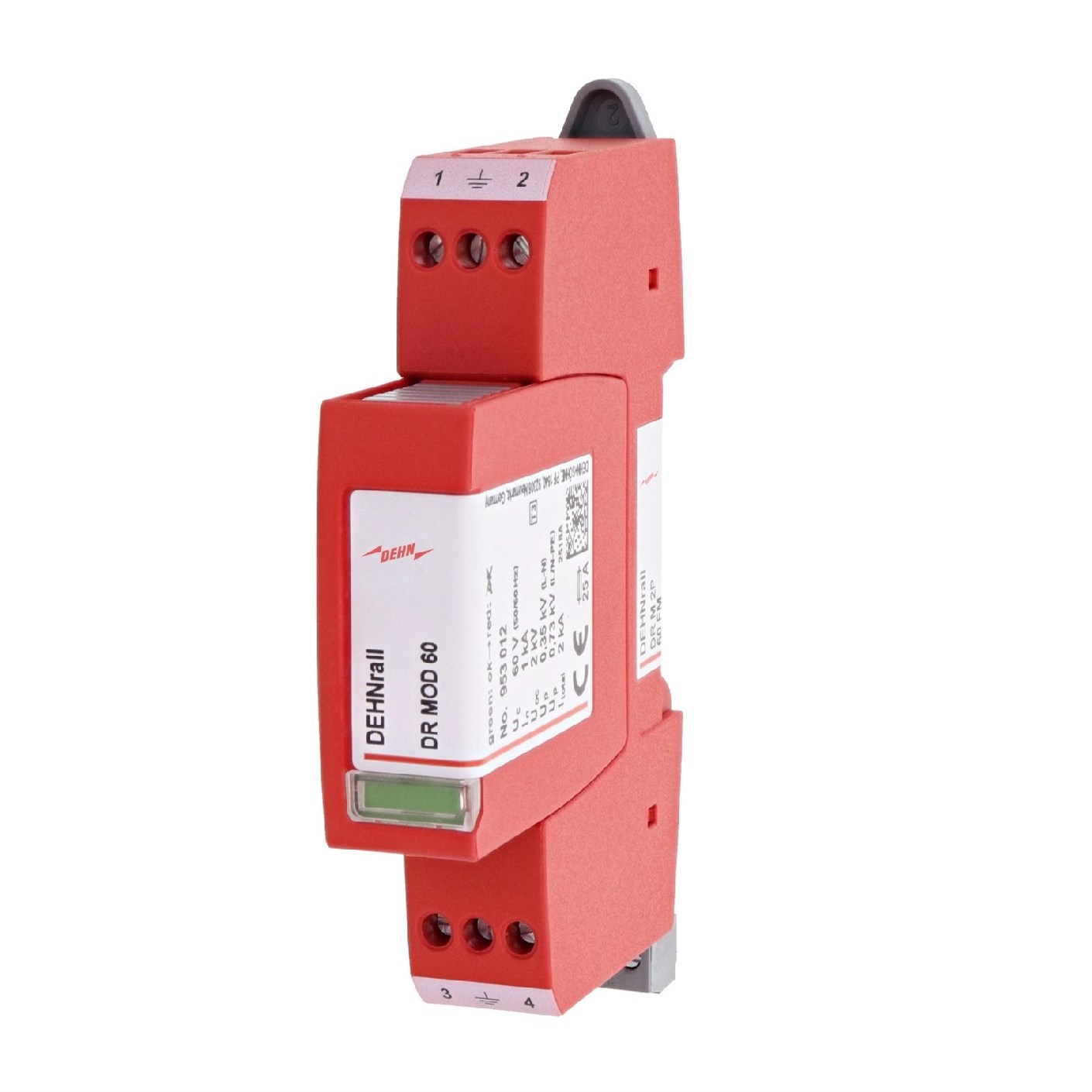

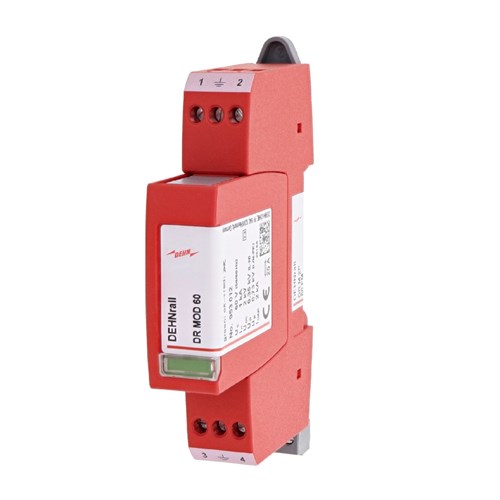

DEHN DRM2P60FM M-Surge Arrester 1kA 60VAC DIN Rail Mount IP20
