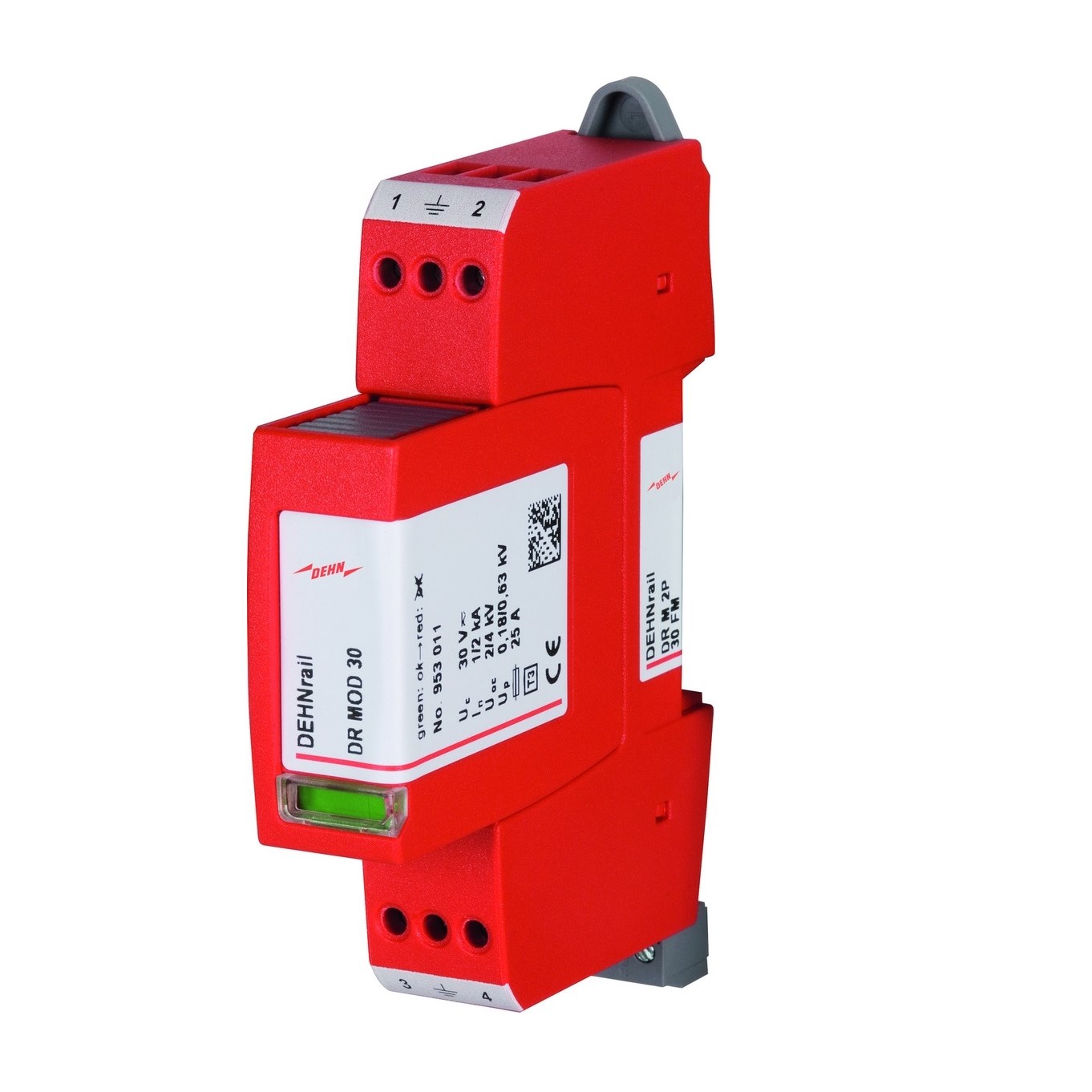

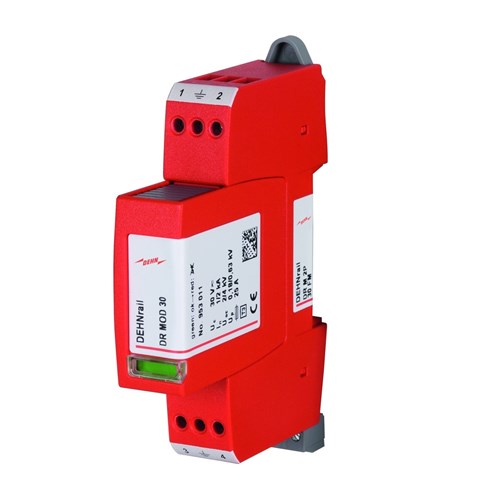

DEHN DRM2P30FM M-Surge Arrester 1kA 30VAC DIN Rail Mount IP20

Product Code: DRM2P30FM

  • Surge Protection Device, Type 3
  • Rated for 30 VAC, 1 kA current
  • IP20 protection rating
  • Quick response time: <= 25 ns
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Two - Pole Surge Arrester
Brand
DEHN
Series
DEHNrail modular
Application
For protecting terminal devices of industrial electronics equipment

Electrical

Max. Backup Fuse
25A gG or B 25A
Nominal Voltage
24V AC
Voltage Protection Level Up
180V, 630V
Short Circuit Current Rating
6kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
1kA
No. of Poles
2P
Max. Continuous Operating Voltage
30 V AC, 30 V DC

Mechanical

Terminal Size
0.5 to 4 mm2 solid, 0.5 to 2.5 mm2 flexible

Dimensions & Physical Data

Depth
66mm
Height
90mm
Width
18mm
No. of Modules Width
1

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
