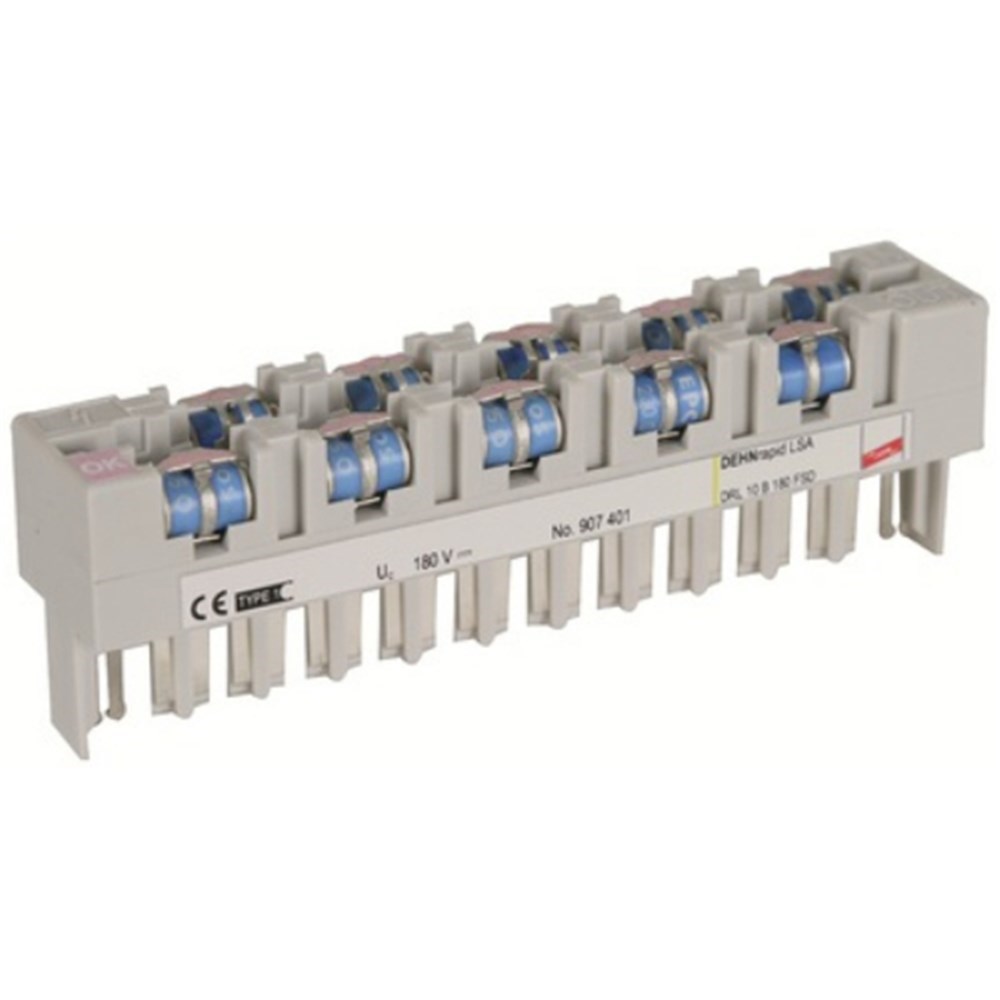

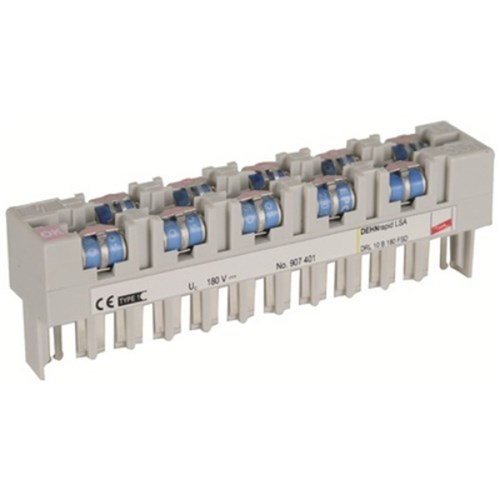

DEHN DRL10B180FSD Lightning Current Arrester 2.5kA (Per Line) 5kA (Per Line) 127VAC 0.17mm L 0.04mm W IP10

Product Code: DRL10B180FSD

  • Protects signal lines up to 127 VAC
  • Handles 5 kA current per line
  • Compact size: 0.17 x 0.04 x 0.04 mm
  • Voltage protection <=0.5 kV L-L & Line-PG
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Lightning Current Arrester
Brand
DEHN
Series
DEHNrapid LSA
Application
Lightning current arrester plug-in block for 10 / 2 LSA disconnection block, supplied with 10 GDT 230 B3 FSD; earthing via mounting frame; fault indication visual, colour change

Electrical

Lightning Impulse Current Iimp (10/350µs)
5kA
Nominal Current (In)
400 mA
Nominal Voltage
180V
Voltage Protection Level Up
850V
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
127 V AC / 180 V DC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP10

Documents

IPD Product Catalogue V17
