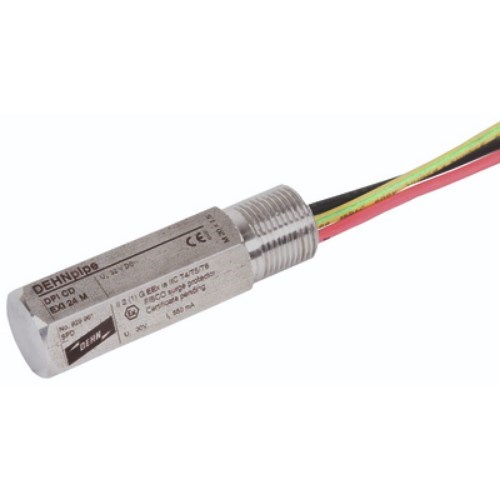

DEHN DPIMDEX24M2 Surge Arrester 1kA 5kA 24.5VAC M20 x 1.5mm Female Male Stainless Steel IP67

Product Code: DPIMDEX24M2

  • Protects signal lines up to 24.5 VAC
  • Handles currents of 5 kA per line
  • IP67 rated for robust protection
  • Stainless steel construction for durability
  • Suitable for signals and measurement equipment
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNpipe
Application
For serial protection of intrinsically safe interfaces acc. to NAMUR NE 21; Ui 30 V, Ii 0.5 A (EN 60079-11 limits); connecting lead 200 mm

Electrical

Nominal Current (In)
500 mA
Nominal Voltage
24V
Voltage Protection Level Up
49V
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
24.5 V AC / 34.8 V DC

Mechanical

Terminal Size
0.08 to 1.5 mm2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP67
