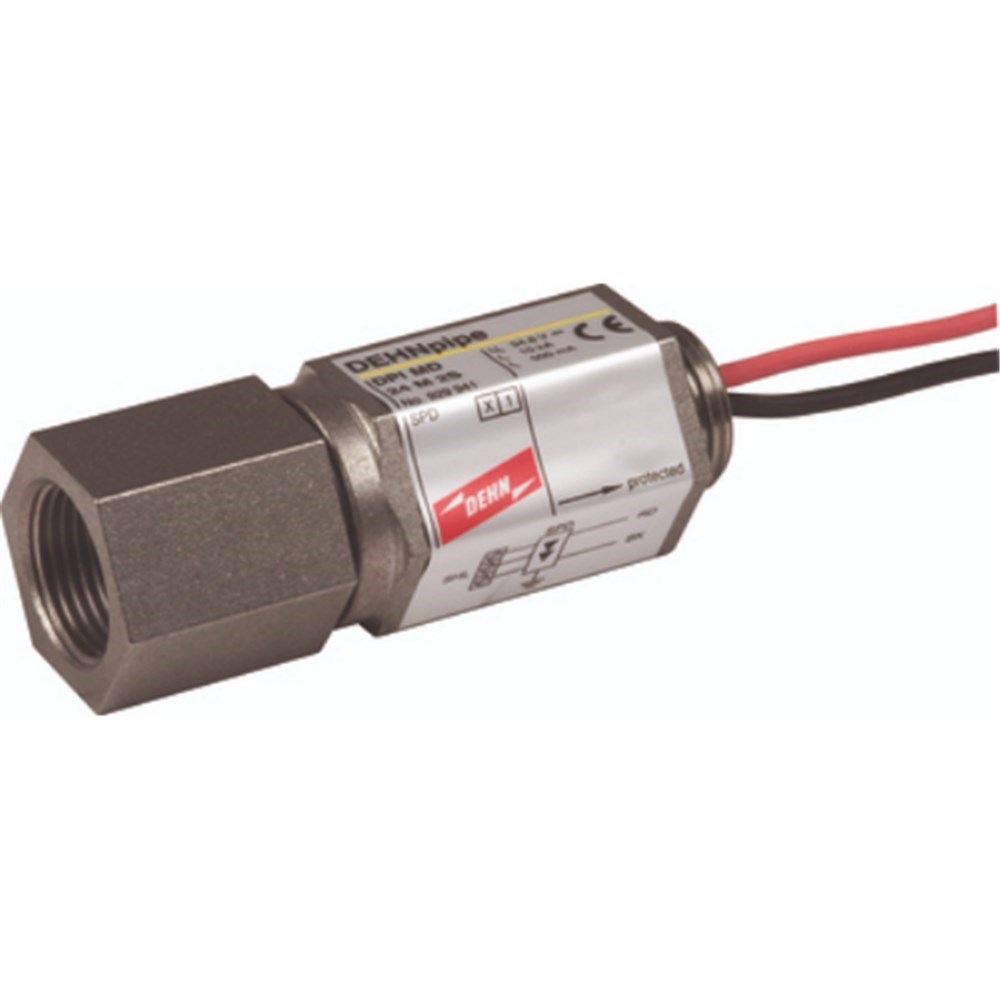

DEHN DPIMD24M2S Surge Arrester 1kA 10kA 24.5VAC M20 x 1.5mm Female Male Stainless Steel IP67

Product Code: DPIMD24M2S

  • Protects signals at 24.5 VAC
  • Handles 10 kA current per line
  • IP67 rated for robust protection
  • Made of durable stainless steel
  • Suitable for signal equipment
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNpipe
Application
For serial protection of interfaces acc. to NAMUR NE 21 (2-conductor process field devices); shield-PG In 20 kA; Up shield-PG <= 650 V (C2), <= 600 V (C3); connecting lead 200 mm

Electrical

Nominal Current (In)
500 mA
Nominal Voltage
24V
Voltage Protection Level Up
50V
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
24.5 V AC / 34.8 V DC

Mechanical

Terminal Size
0.08 to 1.5 mm2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
