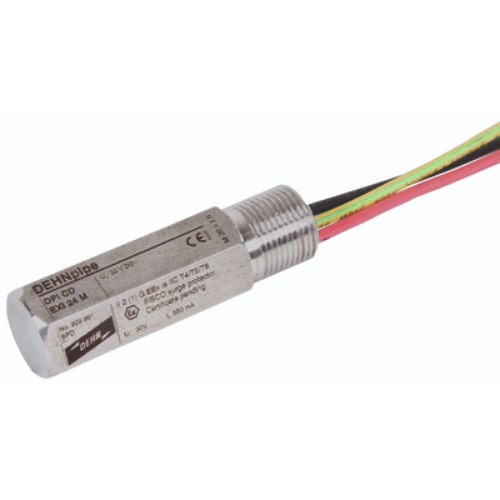

DEHN DPICDHFEXD5M Surge Arrester 10kA 4.2VAC M20 x 1.5mm Male Stainless Steel IP67

Product Code: DPICDHFEXD5M

  • Protects signal lines with 10 kA per line
  • IP67 rated for robust protection
  • Stainless steel construction ensures durability
  • Voltage protection: <=0.055 kV (L-L), <=1 kV (Line-PG)
  • Compatible with signals and measurement equipment
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNpipe
Application
Serial protection of an unearthed pair and bus systems in explosion protection zone 1 or 2; nominal current stated at 80 degC; temperature range published as "for ATEX / IECEx"; connecting lead 300 mm

Electrical

No. of Lines/Pairs
1 pair
Nominal Current (In)
100 mA
Nominal Voltage
5V
Voltage Protection Level Up
12V
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
4.2 V AC / 6 V DC

Environmental

Operating Temperature
-50°C to 80°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
