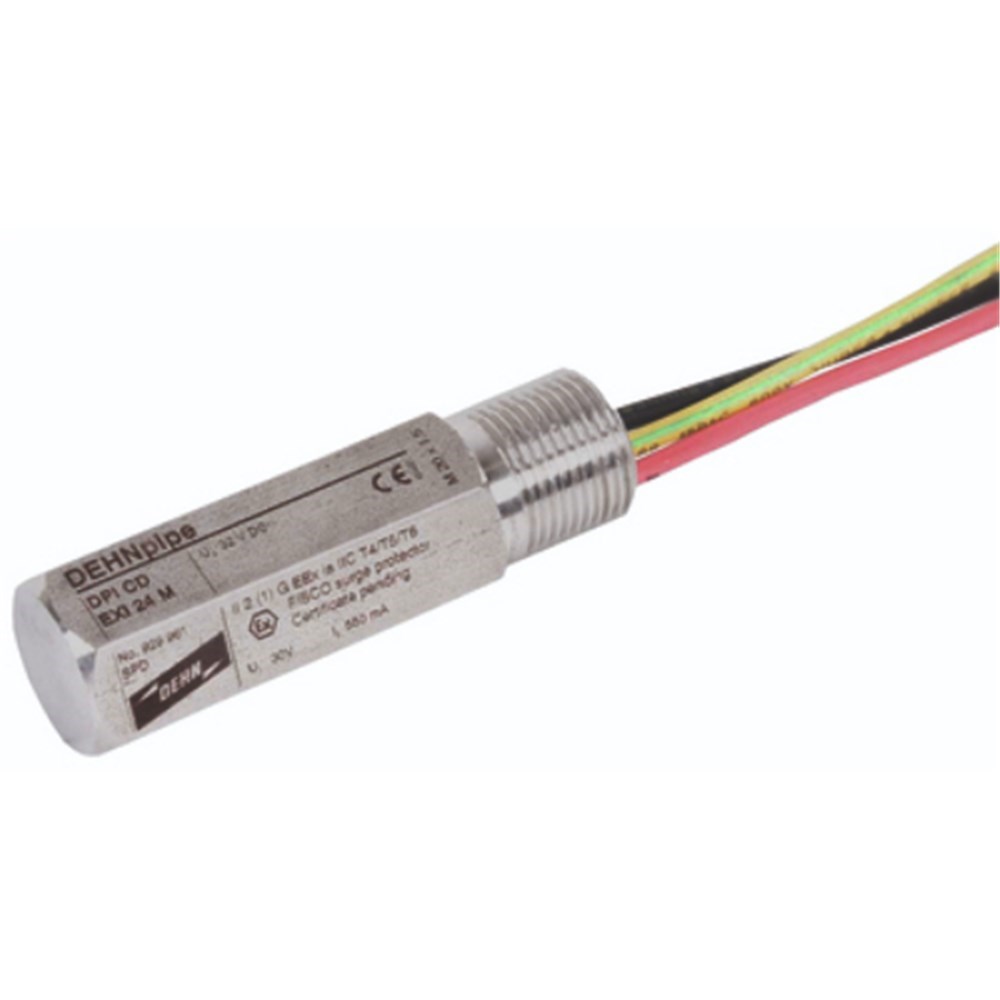

DEHN DPICDEXI24N Surge Arrester 1kA 0.15kA 10kA 22.6VAC 1/2-14 NPT Male Stainless Steel IP67

Product Code: DPICDEXI24N

  • Protects signal lines with IP67 rating
  • Handles 22.6 VAC, 0.15 kA (L-L)
  • Stainless steel construction for durability
  • Voltage protection: <=0.058 kV (L-L)
  • Suitable for signals & measurement equipment
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNpipe
Application
Parallel protection of a floating pair as well as intrinsically safe bus systems; C2 In line-line 150 A, line-PG 10 kA; Ui 30 V, Ii 0.55 A (EN 60079-11 limits); connecting lead 250 mm

Electrical

Lightning Impulse Current Iimp (10/350µs)
1kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
550 mA
Nominal Voltage
24V
Voltage Protection Level Up
50V
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
22.6 V AC / 32 V DC

Environmental

Operating Temperature
-50°C to 80°C
IP Rating
IP67
