Specifications

Product Type Dual Surge Arrester	Brand DEHN	Series DEHNpipe
Application Dual arrester: data side (values used) plus power side. Power side (separate section): UN a.c. 120 / 230 V, UC 255 V, In L-N 3 kA, Itotal 5 kA, Imax L-N 3 kA, Up L-N <= 1.4 kV, Up L / N-PE <= 1.5 kV. C2 In line-line 0.15 kA, line-PG 5 kA. Connecting lead 250 mm

Lightning Impulse Current Iimp (10/350µs) 1kA	Nominal Current (In) 550 mA	Nominal Voltage 24V
Voltage Protection Level Up 50V	Nominal Discharge Current Inom (8/20µs) 10kA	Max. Continuous Operating Voltage 22.6 V AC / 32 V DC

Operating Temperature

-40°C to 80°C

IP Rating

IP67

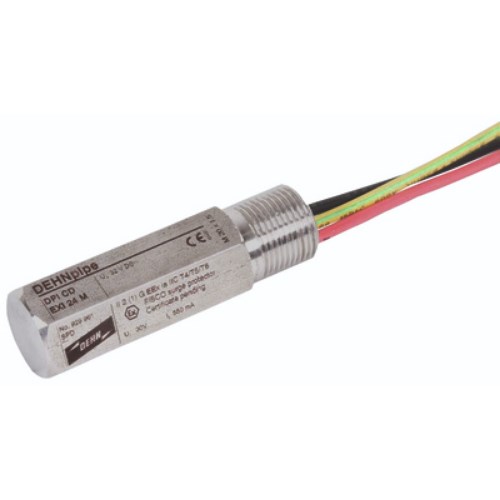

DEHN DPICDEXD23024N Surge Arrester 1kA 0.15kA 22.6VAC 1/2-14 NPT Male Stainless Steel IP67
