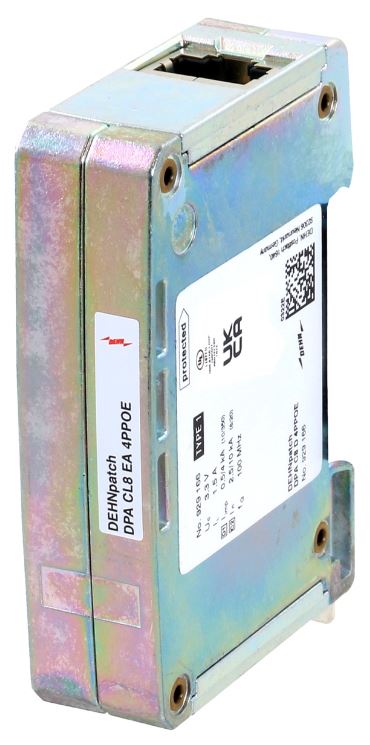

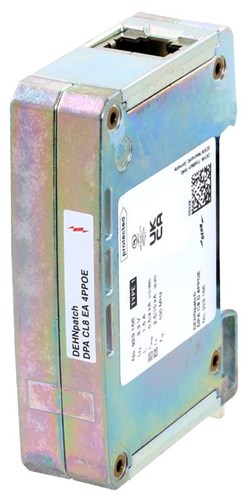

DEHN DPAC8D4PPOE Lightning Current Arrester 0.5kA 1.5A 3.3V RJ45 Socket 35mm DIN Rail 75mm H IP20

Product Code: DPAC8D4PPOE

  • Rated for 3.3 V, 1.5 A
  • RJ45 socket connection
  • IP20 protection rating
  • Mounts on 35 mm DIN rail
  • Operates from -40 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Arrester
Brand
DEHN
Series
DEHNpatch
Application
For the protection of data interfaces against lightning currents in Ethernet applications up to 1 GBit and Power over Ethernet (up to 4 PPoE); protection of 4 pairs via RJ45 sockets

Electrical

Lightning Impulse Current Iimp (10/350µs)
4kA
No. of Lines/Pairs
4 pairs
Nominal Current (In)
1.5 A
Nominal Voltage
3.3V
Voltage Protection Level Up
700V
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
3.3 V DC

Dimensions & Physical Data

Width
19mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
