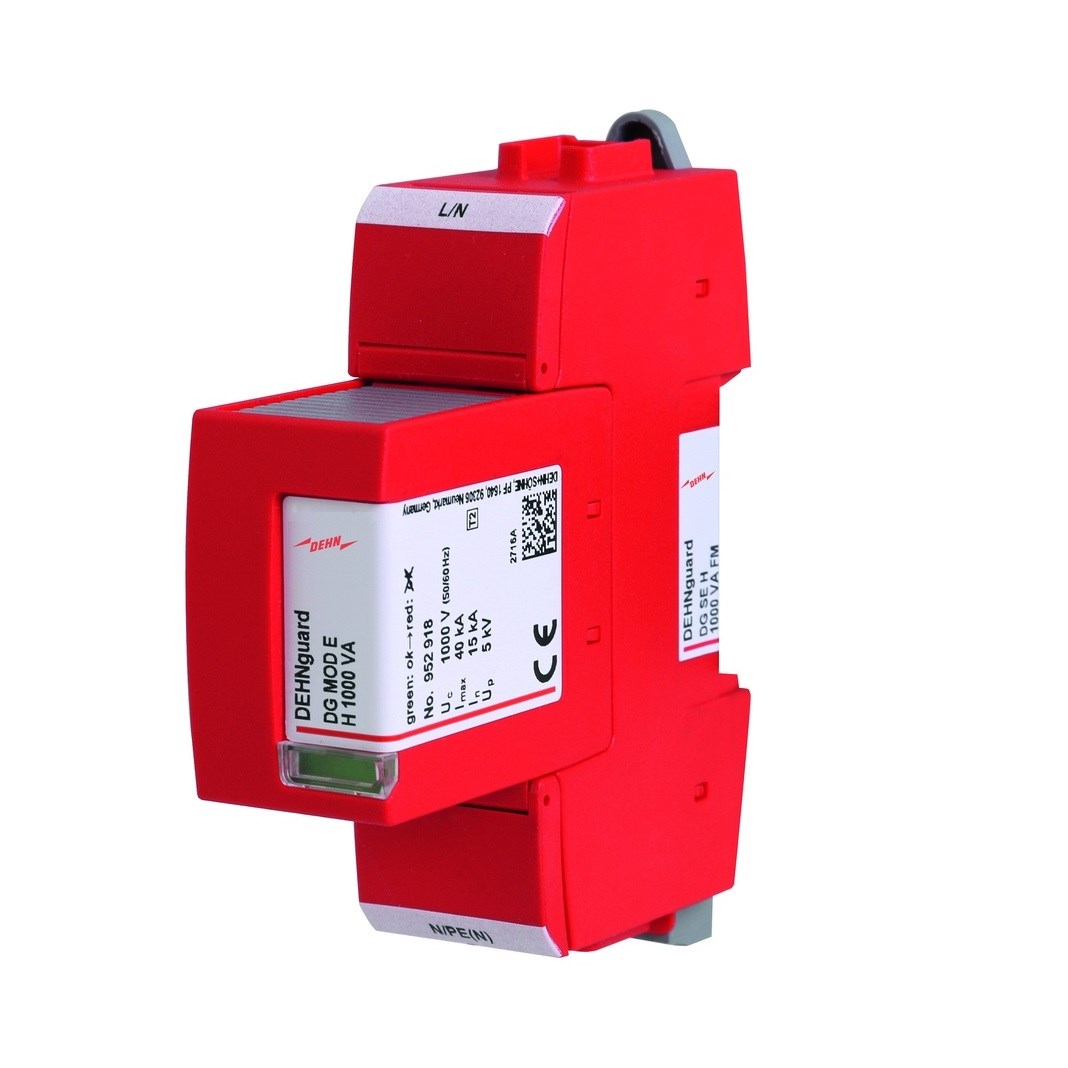

DEHN DGSEH1000VAFM Type-2 Surge Arrester 1-P 15kA 690V 35mm DIN Rail Thermoplastic IP20

Product Code: DGSEH1000VAFM

  • Surge protection for 690 V systems
  • Fast response time of <= 25 ns
  • Compact design: 27 mm wide
  • IP20-rated thermoplastic housing
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard SE H FM
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
100A gG
Nominal Voltage
690V AC
Voltage Protection Level Up
5000V
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
25kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
15kA
No. of Poles
1P
Max. Continuous Operating Voltage
1000 V AC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
1.5

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
