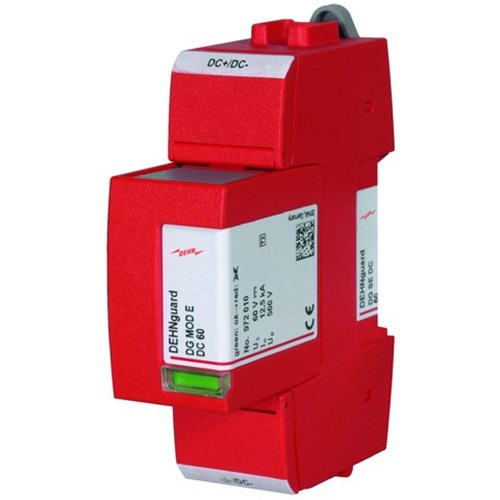

DEHN DGSEDC60 Type-2 Surge Arrester 1-P 12.5kA 48V 35mm DIN Rail Thermoplastic IP20

Product Code: DGSEDC60

  • Surge protection for 48V systems
  • Fast response time of <= 25 ns
  • Compact size: 27x98x66 mm
  • IP20 protection, DIN rail mountable
  • Complies with EN 61643-11 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard ME/SE DC (FM)
Application
For protecting d.c. consumer installations

Electrical

Max. Backup Fuse
35A gG
Nominal Voltage
48V DC
Voltage Protection Level Up
500V
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
12.5kA
No. of Poles
1P
Max. Continuous Operating Voltage
60 V DC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
1.5

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
