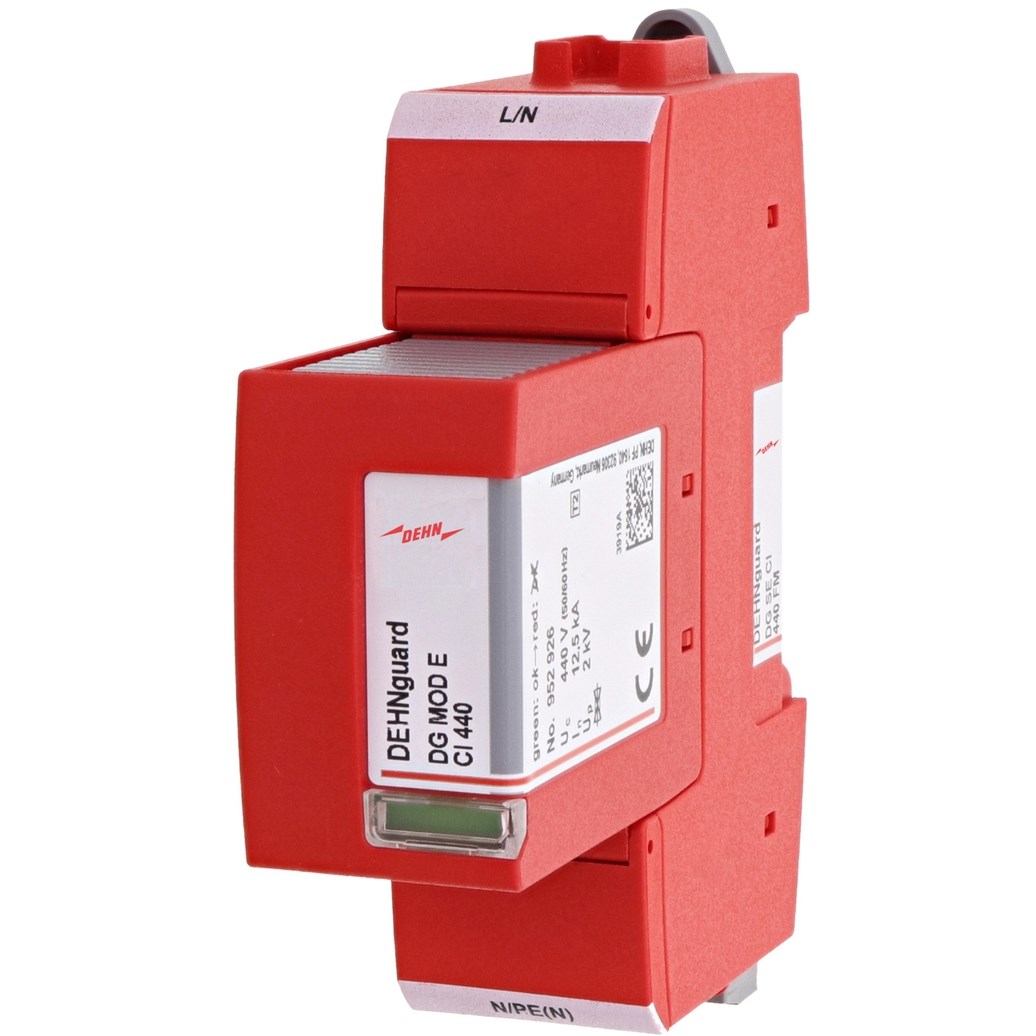

DEHN DGSECI440FM Surge Arrester With Fuse 1-P 12.5kA 400V 35mm DIN Rail Thermoplastic IP20

Product Code: DGSECI440FM

  • Surge protection for 400 V systems
  • Handles currents up to 12.5 kA
  • Compact design: 27mm wide, IP20 rated
  • Quick response time: <= 25 ns
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard SE CI with integrated backup fuse
Application
For industrial applications with a rated voltage of 400 / 690 V

Electrical

Max. Backup Fuse
Not required
Nominal Voltage
400V AC
Voltage Protection Level Up
2000V
Short Circuit Current Rating
25kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
12.5kA
No. of Poles
1P
Max. Continuous Operating Voltage
440 V AC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
1.5

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
