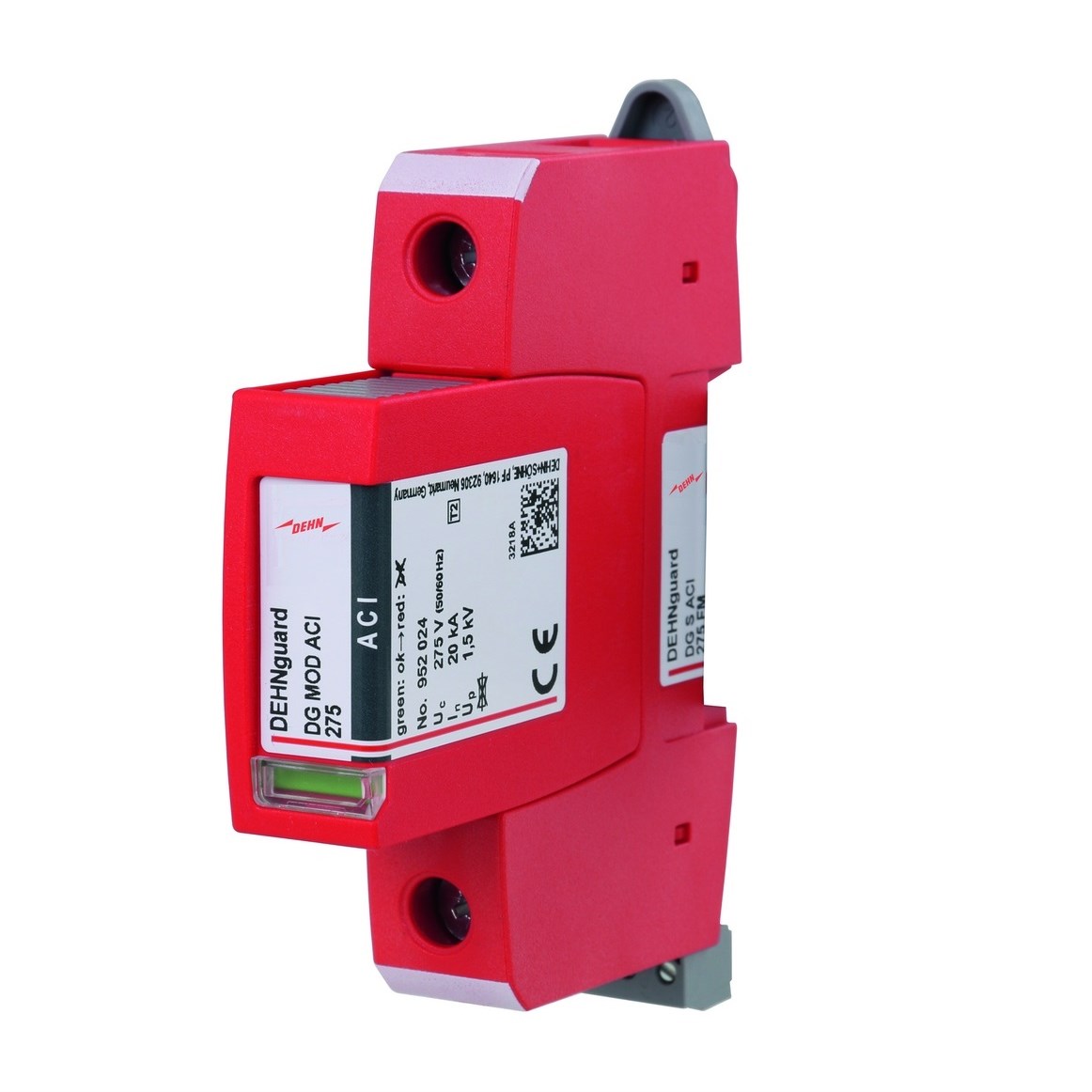

DEHN DGSACI275FM Type-2 Surge Arrester With ACI Technology 1-P 20kA 230V 35mm DIN Rail IP20

Product Code: DGSACI275FM

  • Rated voltage of 230 V for reliable protection
  • Handles up to 20 kA current effectively
  • Compact design: 18mm wide, mounts on DIN rail
  • Fast response time of 100 ns for quick action
  • Operates in extreme temperatures: -40 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard modular with Advanced Circuit Interruption (Safe Dimensioning)
Application
For protecting low-voltage consumer installations against surges

Electrical

Max. Backup Fuse
Not required
Nominal Voltage
230V AC
Voltage Protection Level Up
1500V
Short Circuit Current Rating
25kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
1P
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
1

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
