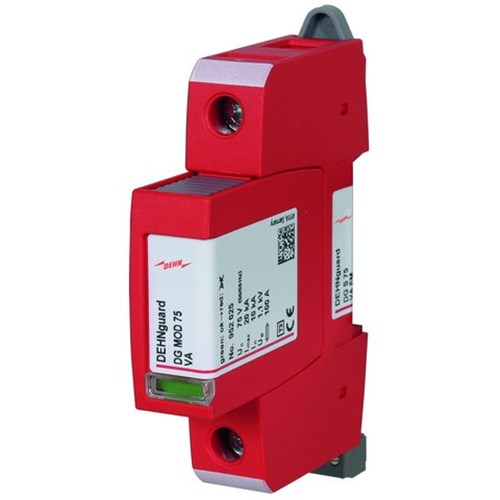

DEHN DGS75VAFM Surge Arrester 10kA 60V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGS75VAFM

  • Protects against surges up to 10 kA
  • Compact size: 18 mm width, DIN rail mount
  • Fast response time 100 ns
  • Operates in -40 to 80°C temperature range
  • Meets EN 61643-11 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard S VA
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
100A gG
Nominal Voltage
60V AC
Voltage Protection Level Up
1100V
Max. Discharge Current Imax (8/20µs)
20kA
Short Circuit Current Rating
25kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
10kA
No. of Poles
1P
Max. Continuous Operating Voltage
75 V AC, 100 V DC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
1

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
