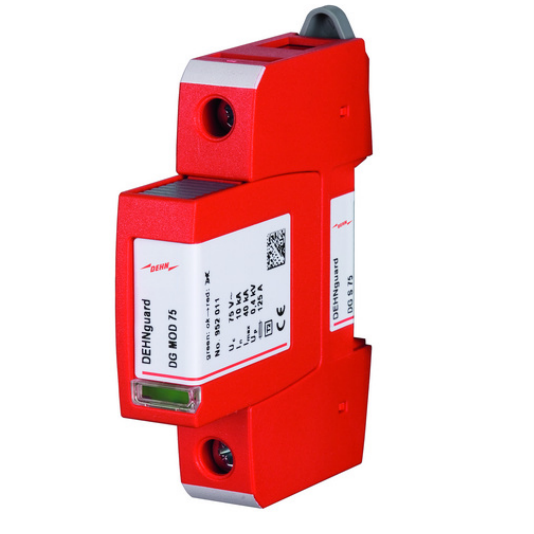

DEHN DGS75 Surge Arrester 10kA 60V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGS75

  • Surge protection with 60 V rating
  • Fast response time of <= 25 ns
  • Mounts on 35 mm DIN rail
  • Compact size: 18x90x66 mm
  • Meets KEMA, VDE, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Combined Lightning Current and Surge Arrester
Brand
DEHN
Series
DV M2 TT FM
Application
single-phase TT systems (L+N)

Electrical

Lightning Impulse Current Iimp (10/350&#181;s)
25 / 50 kA
Max. Backup Fuse
250 A gG
Max. Continuous Operating Voltage (AC/DC)
255 V
Nominal Voltage
230 V
Voltage Protection Level Up
&#8804; 1.5 kV
Short Circuit Current Rating
50 kArms / 100 Arms
Nominal Discharge Current Inom (8/20&#181;s)
25 / 50 kA

Mechanical

Mounting Method
35 mm DIN rails
Terminal Size
max. 1.5 mm2 solid / fine-stranded

Dimensions

Depth
90mm
Height
73mm
Width
36mm

Environmental

Operating Temperature
-40 °C ... +80 °C
IP Rating
IP 20
