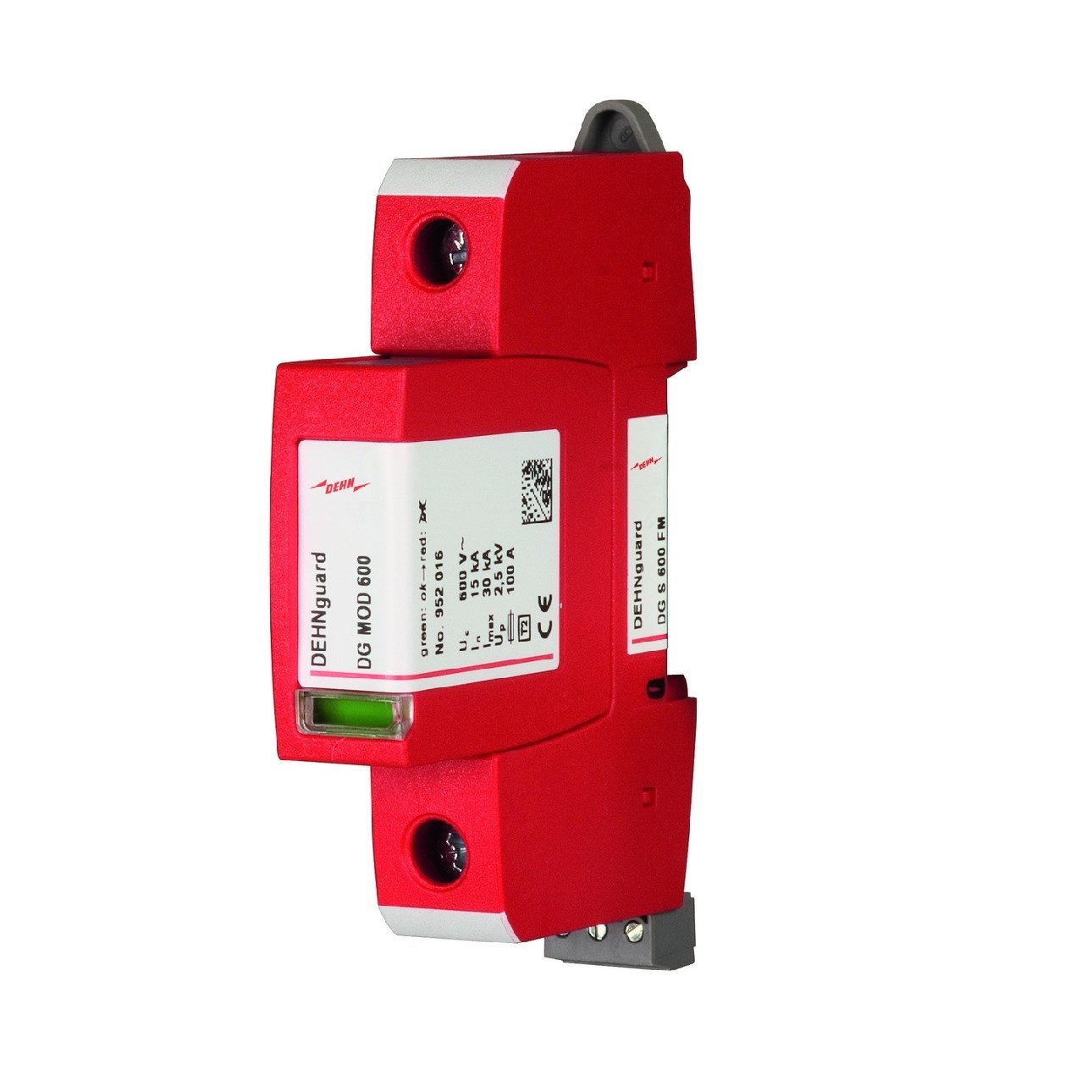

DEHN DGS600FM Type-2 Surge Arrester With Remote Sign Contact 1-P 15kA 480V 35mm DIN Rail IP20

Product Code: DGS600FM

  • Surge protection for 480 V systems
  • Compact 18 mm width, DIN rail mount
  • Fast response time 25 ns
  • Operates in -40 to 80°C range
  • Meets KEMA, VDE, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard S
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
100A gG
Nominal Voltage
480V AC
Voltage Protection Level Up
2500V
Max. Discharge Current Imax (8/20µs)
30kA
Short Circuit Current Rating
25kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
15kA
No. of Poles
1P
Max. Continuous Operating Voltage
600 V AC, 600 V DC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
1

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
