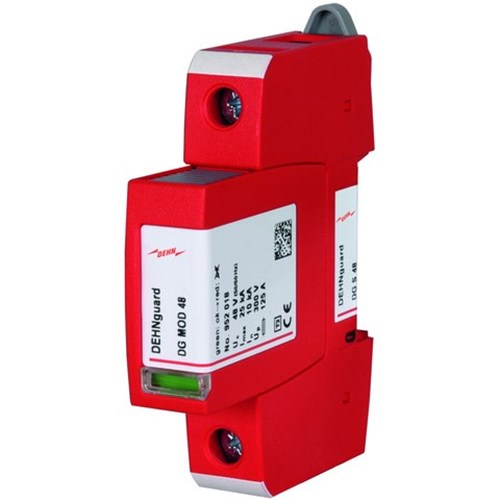

DEHN DGS48 Surge Arrester 7.5kA 42V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGS48

  • Protects against surges up to 7.5 kA
  • Compact size: 18 mm width, fits 35 mm DIN rail
  • Fast response time of <= 25 ns
  • Operates in extreme temps: -40 to 80°C
  • Complies with EN 61643-11 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard S
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
125A gG
Nominal Voltage
42V AC
Voltage Protection Level Up
330V
Max. Discharge Current Imax (8/20µs)
25kA
Short Circuit Current Rating
50kA
Nominal Discharge Current Inom (8/20µs)
7.5kA
No. of Poles
1P
Max. Continuous Operating Voltage
48 V AC, 60 V DC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
1

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
