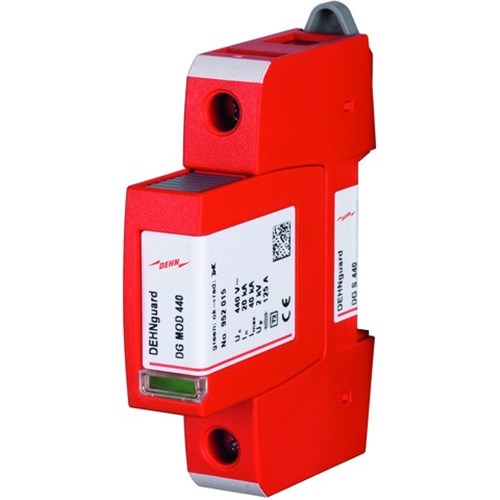

DEHN DGS440 Surge Arrester 20kA 400V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGS440

  • Protects against surges up to 20 kA
  • Compact design with 18 mm width
  • Quick response time of 25 ns
  • Fits on standard 35 mm DIN Rail
  • Wide temp range from -40 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard S
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
125A gG
Nominal Voltage
400V AC
Voltage Protection Level Up
2000V
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
1P
Max. Continuous Operating Voltage
440 V AC, 585 V DC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
1

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
